Description

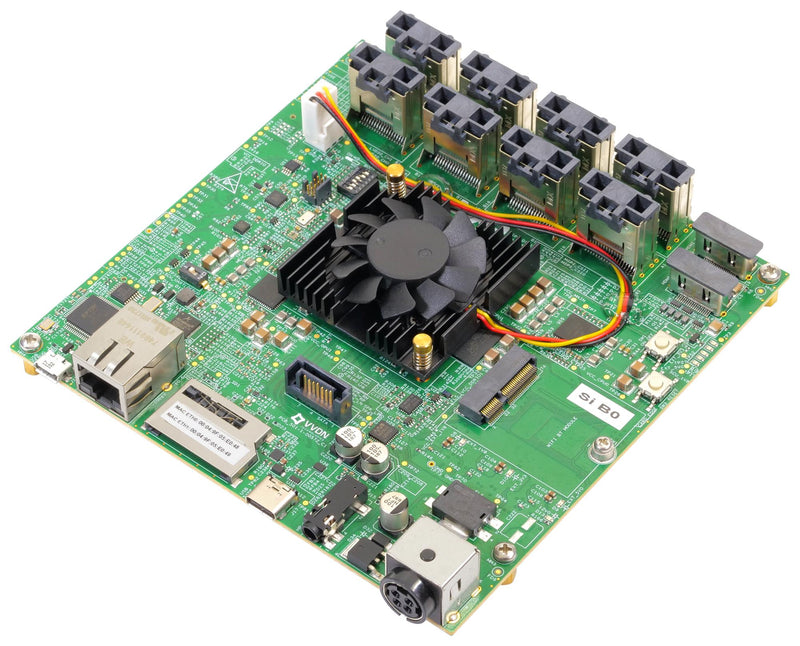

i.MX 8QuadMax multisensory enablement kit (MEK) CPU Board provides a platform for evaluation and development of applications based on the Arm® Cortex® A72 / A53 + Cortex-M4F based i.MX 8QuadMax and i.MX 8QuadPlus Applications Processors. It also provides a platform for NXP PF8100 Power Management Integrated Circuit (PMIC) solution and sensors. The 8QuadMax MEK CPU Board (MCIMX8QM-CPU) offers high-level integration to support graphics, video, image processing, audio, and voice functions.
- NXP i.MX 8QuadPlus processor
- LPDDR4 memory x64, 32GB eMMC 5.1, 64MB octal SPI flash memory
- Audio codec, microphone and headphone jacks
- Full-size SD/MMC card slot, 10/100/1000 Ethernet port, USB 3.0 Type C
- Supports Linux, Android, FreeRTOS
- M.2 expansion connector (PCIe, USB, UART, I2C and I2S)
i.MX 8QuadMax MEK CPU board, Power supply, Quick start guide, USB 3.0 type C to type A, USB 2.0 type A to type micro, LVDS to HDMI adapter card.
Other details
| Brand | NXP |
| Part Number | MCIMX8QM-CPU |
| Quantity | Each |
| Application Note EN |  |
