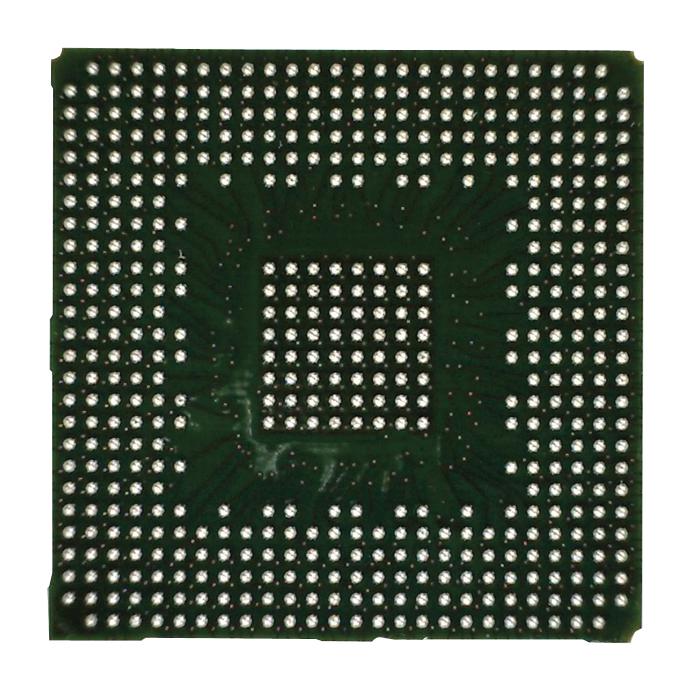

NXP MCIMX515CJM6C Microprocessor, i.MX51 Series, 800 MHz, 1.05 V to 1.15 V, MAPBGA-529

The i.MX51 processor features advanced and power-efficient implementation of the ARM Cortex�-A8 core, which operates at speeds as high as 800MHz. Up to 200MHz DDR2 and mobile DDR DRAM clock rates are supported. The heart of the i.MX51 processor is a level of power management throughout the device that enables the rich suite of multimedia features and peripherals to achieve minimum system power consumption in both active and various low-power modes. Smart Speed Technology enables the designer to deliver a feature-rich product that requires levels of power that are far less than typical industry expectations.

• ARM Cortex-A8 800MHz CPU
• 32kB instruction and data caches
• Unified 256kB L2 cache
• NEON SIMD media accelerator
• Vector floating point co-processor
• OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators
• Multi-format HD 720p video decoder and D1 video encoder hardware engine
• 24bit primary display support up to WXGA resolution
• 18bit secondary display support
• Analogue HD720p component TV output
• High quality hardware video de-interlacing
• Image and video resize, inversion and rotation hardware
• Alpha blending and colour space conversion
• Video/graphics combining - Four planes plus hardware cursor
• Display quality enhancement - colour correction, gamut mapping and gamma correction
• External memory interface - mDDR and DDR2 SDRAM, 16/32-bit, 200MHz and SLC/MLC NAND flash, 8/16bit
• Interface flexibility
• Advanced power management
• Increased security
• Product longevity

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
