Description

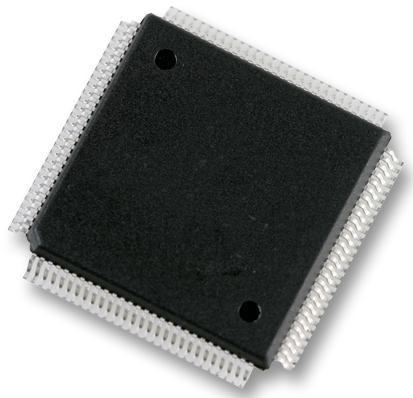

The MC9S12XD256CAL is a 16-bit Microcontroller based on enhanced HCS12X CPU (40MHz bus) with CISC architecture operates at a maximum frequency of 80MHz. The device incorporates 256kB internal flash, 14kB internal RAM, 4kB EEPROM, 16-channel 10-bit A/D converter and 91 general-purpose I/O pins. This device also features peripherals like one inter-integrated circuit (IIC) bus module, three multi-scalable controller area networks (MSCAN) CAN 2.0 A/B software compatible modules, four serial communications interface (SCI) and three serial peripheral interface modules (SPI). The MC9S12XD family features the performance boosting XGATE co-processor. The XGATE, which is programmable in C language, has an instruction set which is optimized for data movement, logic and bit manipulation instructions. It runs at twice the bus frequency of the S12X and off-loads the CPU by providing high speed data transfer between any peripheral module, RAM and I/O ports.
- Upward compatible with MC9S12 instruction set
- Interrupt stacking and programmer's model identical to MC9S12
- Instruction queue
- Enhanced indexed addressing
- Enhanced instruction set
- External bus interface (EBI)
- Module mapping control (MMC)
- Interrupt controller (INT)
- Debug module to monitor HCS12X CPU and XGATE bus activity
- Background debug mode (BDM)
- Periodic interrupt timer (PIT)
- Clock and reset generator (CRG)
- Low noise/low power Pierce oscillator
- Enhanced capture timer - 16-bit main counter with 7-bit prescaler
- 8 PWM (pulse-width modulator) channels
- On-chip voltage regulator
- Low-voltage detect (LVD) with low-voltage interrupt (LVI)
- Power-on reset (POR) circuit
- Low-voltage reset (LVR)
- Ultra low-power wake-up timer
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Product Range: HCS12X Family S12XD Series Microcontrollers |
Device Core: HCS12X |
Data Bus Width: 16 bit |
Operating Frequency Max: 80MHz |
Program Memory Size: 256KB |
No. of Pins: 112Pins |
IC Case / Package: LQFP |
No. of I/O's: 67I/O's |
Interfaces: CAN, I2C, SCI, SPI |
RAM Memory Size: 14KB |
ADC Channels: 24Channels |
ADC Resolution: 10Bit |
Supply Voltage Min: 2.35V |
Supply Voltage Max: 2.75V |
Operating Temperature Min: -40°C |
Operating Temperature Max: 85°C |
IC Mounting: Surface Mount |
MCU Series: S12XD |
MCU Family: HCS12X |
Qualification: - |
MSL: MSL 3 - 168 hours |
Other details
Brand | NXP |
Part Number | MC9S12XD256CAL |
Quantity | Each |
Technical Data Sheet EN |
