NXP MC9S08AW16CFGE 8 Bit MCU General Purpose AW Series S08 Family S08AW Microcontrollers 40 MHz 16 KB

The MC9S08AW16CFGE is a 8-bit General-purpose Microcontroller based on enhanced HCS08 CPU (20MHz bus) with CISC architecture operates at a maximum frequency of 40MHz. The device incorporates 16kB internal flash, 8 channel 10-bit A/D converter and 34 general-purpose I/O pins. This device also features peripherals like one inter-integrated circuit (IIC) bus module to operate at up to 100kbps, one serial peripheral interface modules (SPI), two serial communications interface (SCI) modules and real-time counter (RTC). Breakpoint capability to allow single breakpoint setting during in-circuit debugging (plus two more breakpoints in on-chip debug module). In-circuit emulator (ICE) debug module containing two comparators and nine trigger modes. Eight deep FIFO for storing change-of-flow addresses and event-only data.

• HC08 Instruction set with added BGND instruction
• Single-wire background debug mode interface
• On-chip real-time in-circuit emulation (ICE)
• Support for up to 32 Interrupt/reset sources
• Clock source options include crystal, resonator, external clock or internally generated clock
• Optional computer operating properly (COP) reset
• Low-voltage detection with reset or interrupt
• Illegal opcode detection with reset
• Illegal address detection with reset
• Wait plus two stops
• One 2-channel and one 6-channel 16-bit Timer/pulse-width modulator (TPM) module
• 8-pin Keyboard interrupt module (KBI)
• Software-selectable pull-ups on ports when used as inputs
• Software-selectable slew rate control on ports when used as outputs
• Software-selectable drive strength on ports when used as outputs
• Master reset pin and power-on reset (POR)
• Internal pull-up on RESET, IRQ and BKGD/MS pins

Applications

Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	NXP
Part Number	MC9S08AW16CFGE
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN

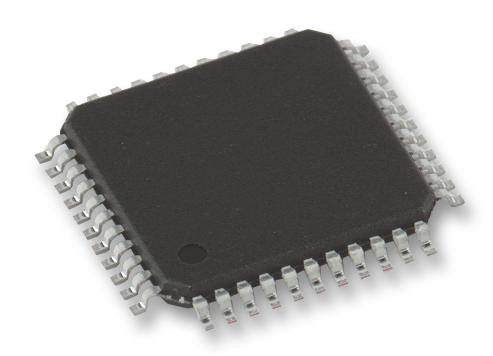

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
