MC56F80748MLH is a digital signal controller (DSC) based on the 32bit 56800EF core. On a single chip, each device combines the processing power of a DSP and the functionality of an MCU, with a flexible set of peripherals to support many target applications industrial control, motion control, home appliances, general-purpose inverters, smart sensors, fire and security systems, switched-mode power supply and power management, uninterruptible power supplies (UPS), solar inverter, medical monitoring applications.
- 64KB flash, 8KB RAM, 100MHz core frequency, inter module Xbar, 8-ch high-resolution PWM
- 1 external watchdog monitor, 4CH eDMA, 8MHz / 200KHz internal OSC
- External crystal oscillator (4MHz to 16MHz), 3 comparator + 8-bit DAC, 2 operational amplifier
- Three analogy comparators with integrated 8-bit DAC references, on-chip temperature sensors
- Communication interfaces, up to two high-speed queued SCI modules with LIN functionality
- One 16bit quad timer (1 x 4Ch), three 32bit periodic interval timers (PITs)
- Cyclic redundancy check (CRC) generator, windowed computer operating properly (COP) watchdog
- On-chip oscillators 200KHz, and 8/2MHz IRC, crystal / resonator oscillator
- 4-channel enhanced DMA controller, supporting up to 63 request sources
- 64-pin LQFP package, temperature range from -40 to 125°C
Other details
| Brand |
NXP |
| Part Number |
MC56F80748MLH |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

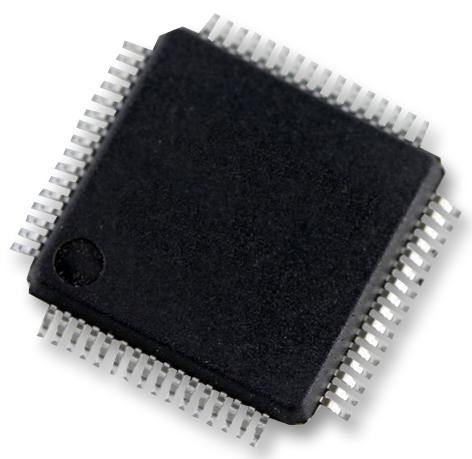

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
