NXP MC34932EK MC34932EK Motor Driver Dual H-Bridge 5V to 28V Supply 5A/4 Outputs WSOIC-54

The MC34932EK is a monolithic H-bridge Power IC, designed for any low voltage DC servo motor control application within the current and voltage limits stated in this specification. This device is powered by SMARTMOS technology. Each H-bridge in the 34932 is able to control inductive loads with currents up to 5.0A peak. RMS current capability is subject to the degree of heat sinking provided to the device package. Internal peak current limiting (regulation) is activated at load currents above 6.5A ±1.5A. Output loads can be pulse-width modulated (PWM-ed at frequencies up to 20kHz). A load current feedback feature provides a proportional (0.24% of the load current) current output suitable for monitoring by a microcontroller's A/D input. A status flag output reports under-voltage, over-current and over-temperature fault conditions.

• Automatic thermal back-off
• Real-time load current monitoring
• Design-in simplicity - Integrated H-bridge with charge pump, control, protection and four MOSFETs
• Output short-circuit protection (short to VPWR or GND)
• Over-current limiting (regulation) via internal constant-off-time PWM
• 120mR Typical RDS (ON) high efficiency
• Sleep mode with current draw <20µA

Applications

Motor Drive & Control, Automation & Process Control, Robotics, Security, Industrial, Medical

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	NXP
Part Number	MC34932EK
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
Application Note EN

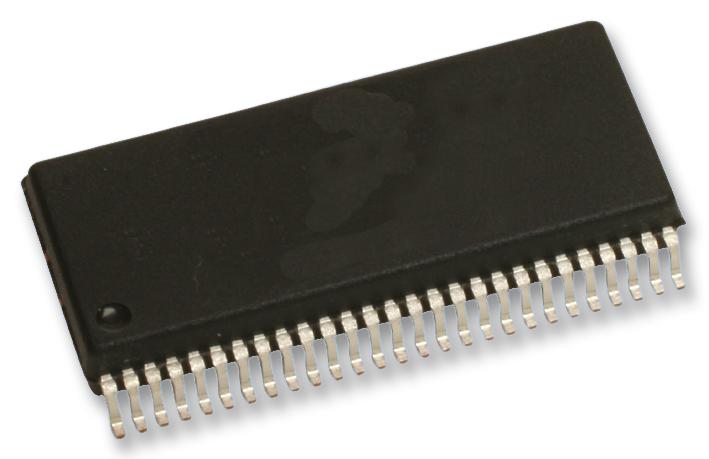

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
