NXP MC33926PNB Motor Driver/Controller Half Bridge 8V to 28V Supply 5 A/2 Outputs QFN-32

The MC33926PNB is a SMARTMOS monolithic H-bridge Power IC, designed primarily for automotive electronic throttle control, but is applicable to any low-voltage DC servo motor control application within the current and voltage limits stated in this specification. It is able to control inductive loads with currents up to 5A peak. RMS current capability is subject to the degree of heat sinking provided to the device package. Internal peak-current limiting (regulation) is activated at load currents above 1.5A ±6.5A. Output loads can be pulse width modulated at frequencies up to 20kHz. A load current feedback feature provides a proportional (0.24% of the load current) current output suitable for monitoring by a microcontrollers A/D input. A Status Flag output reports under voltage, over current and over temperature fault conditions. Two independent inputs provide polarity control of two half-bridge totem-pole outputs.

• 5 to 28V Continuous operation
• 225mR Maximum RDS(on) at 150°C (each H-Bridge MOSFET)
• 3V and 5V TTL/CMOS logic compatible inputs
• Output short-circuit protection
• Temperature dependent current limit threshold reduction
• All Inputs have an internal source/sink to define default (floating input) states
• <50µA Sleep mode with current draw (with inputs floating or set to match default logic states)

Applications

Automotive

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	NXP
Part Number	MC33926PNB
Quantity	Each
Technical Data Sheet EN
Application Note EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

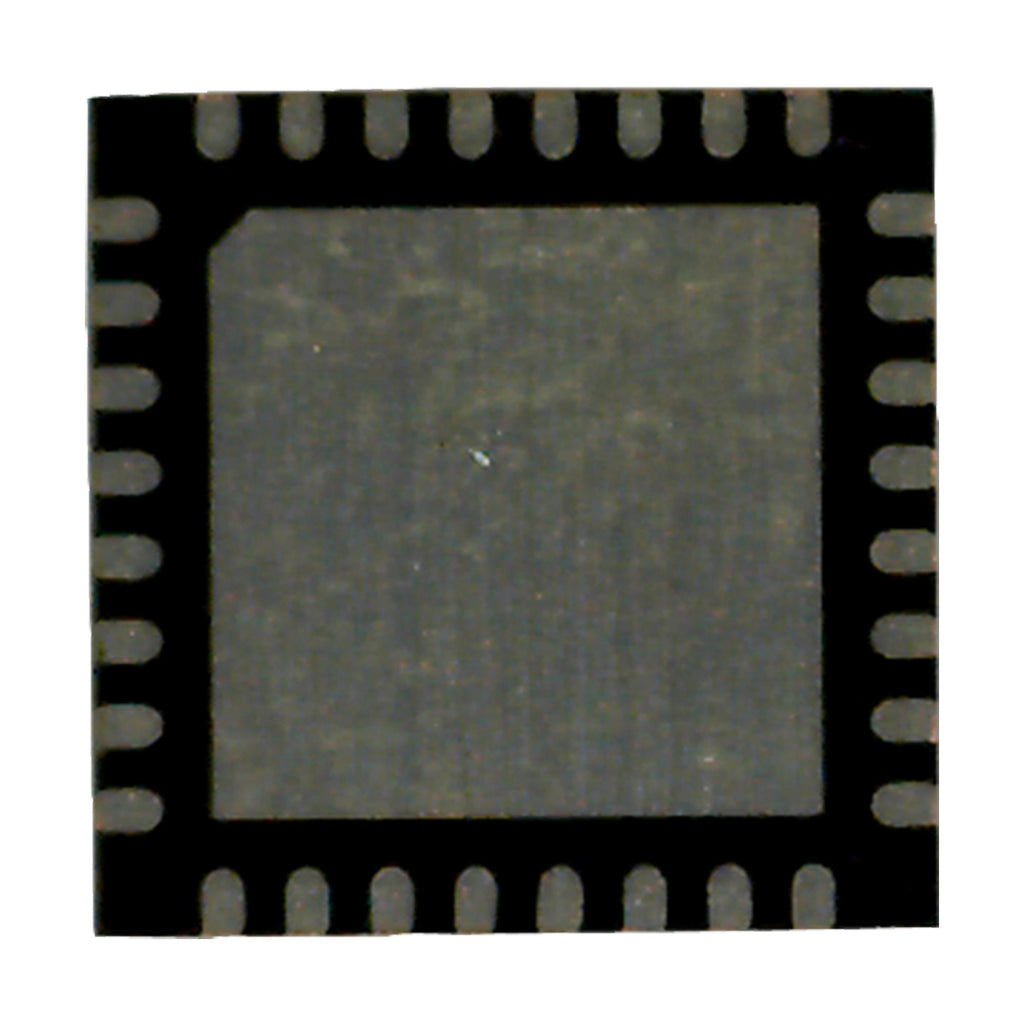

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
