LPC845M301JHI48K is an LPC800 series Arm Cortex-M0+ based, low-cost 32-bit MCU family operating at CPU frequencies of up to 30MHz. Typical applications include sensor gateways, simple motor control, industrial, portables and wearables, gaming controllers, lighting, 8/16bit applications, motor control, consumer, fire and security applications, climate control.
- Single power supply 1.8V to 3.6V
- Arm Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)
- System tick timer, AHB multilayer matrix and Micro Trace Buffer (MTB)
- 64KB flash, 16KB SRAM, 2 DAC and 42 pin GPIO
- Supports Flash In-Application Programming (IAP)
- FAIM API, FRO API and on-chip ROM APIs for integer divide
- Unique device serial number for identification
- Supports 5 USART, 4 I2C, 2 SPI and capacitive touch interfaces

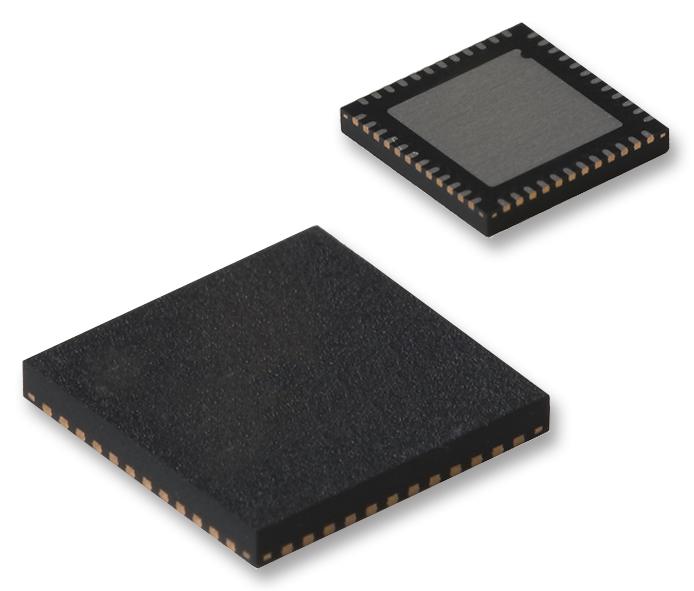

- 48 pin HVQFN package
- Operating temperature range of -40°C to +105°C
Product details
| Product Range:
LPC Family LPC800 Series Microcontrollers
|
| Device Core:
ARM Cortex-M0+
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
30MHz
|
| Program Memory Size:
64KB
|
| No. of Pins:
48Pins
|
| IC Case / Package:
HVQFN
|
| No. of I/O's:
42I/O's
|
| Interfaces:
12C, SPI, USART
|
| RAM Memory Size:
16KB
|
| ADC Channels:
12Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
3.6V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
LPC
|
| MCU Series:
LPC800
|
| Qualification:
-
|
Other details
| Brand |
NXP |
| Part Number |
LPC845M301JHI48K |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
