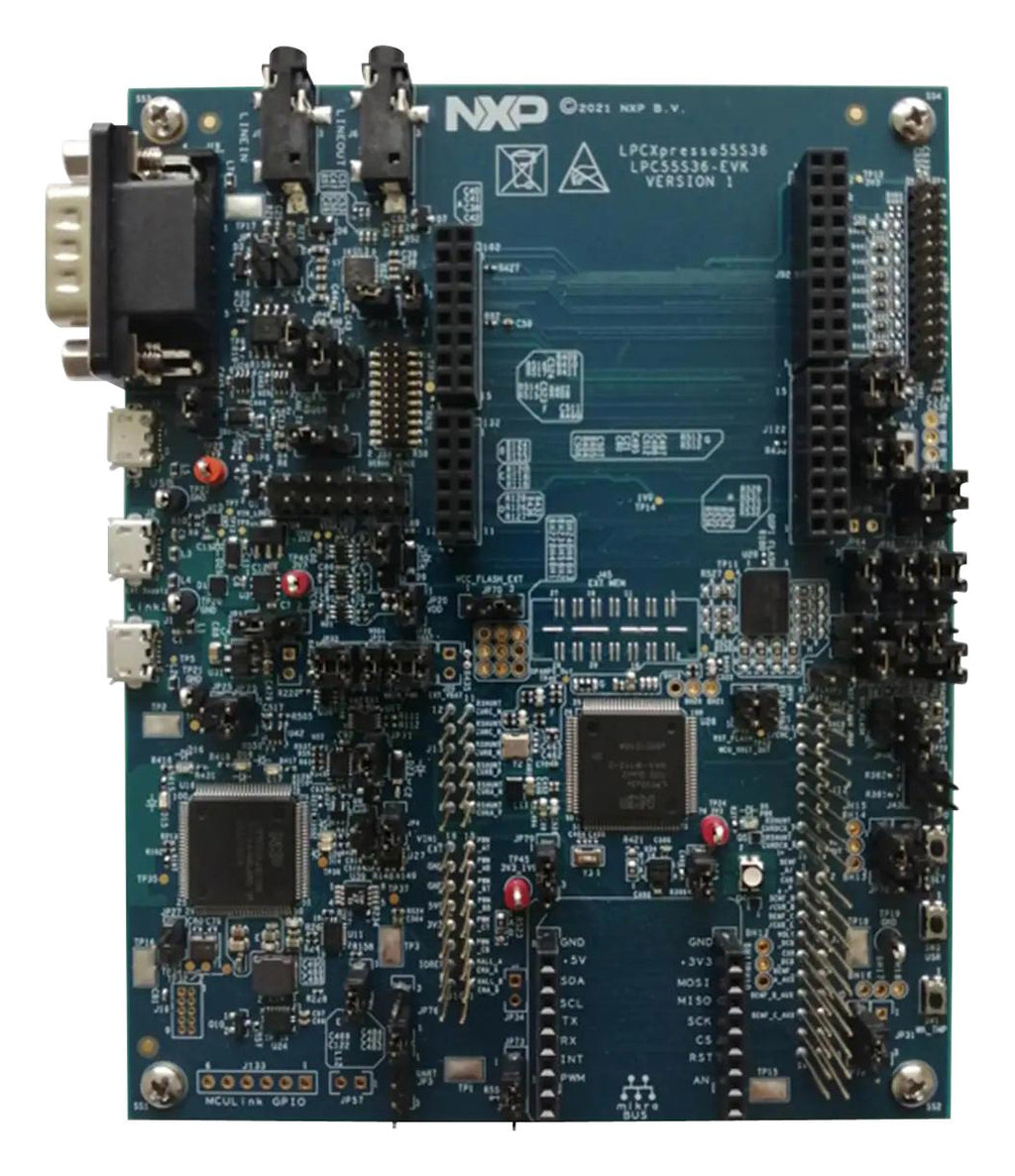

NXP LPC55S36-EVK Development Board, LPC55S36, 32bit, ARM Cortex-M33

LPC55S36-EVK is a LPCXpresso55S36 development board. The LPCXpresso board for the LPC5500 series MCUs provides a powerful, extendable platform for evaluation and prototyping using the MCUXpresso suite of software and tools. Arduino UNO Mikroelekronika Click module sites provide a wide selection of add-on options. The board features a high-speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER. The board can also be used with an external debug probe such as those from SEGGER and P&E. The board is compatible with the Arduino UNO R3 and Mikroe click boards. It can be used with a wide range of development tools, including NXP MCUXpresso IDE, Keil µVision, and IAR Embedded Workbench.

• I2C, UART, SPI port from LPC55S36, CAN-FD transceiver, D-sub connector compatible w/ PCAN-USB FD adp
• On-board, high-speed USB, MCU-link debug probe with CMSIS-DAP and SEGGER J-Link protocol options
• Hardware support for external debug probe or external debug target
• MikroEletronika Click expansion option, PMod compatible expansion / host connector
• LPCXpresso-V3 expansion connectors, compatible with Arduino UNO R3
• RGB user LED, plus reset, ISP, wake and user buttons user interface

Contents

LPCXpresso55S36 board, USB cable, Four M3 x 40mm female-female brass hex standoff, Four M3 x 5mm stainless steel Phillips pan head screw, LPCXpresso55S36 quick start guide.
