Product details
| Product Range:
LPC Family LPC5500 Series Microcontrollers
|
| Device Core:
ARM Cortex-M33F
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
96MHz
|
| Program Memory Size:
256KB
|
| No. of Pins:
64Pins
|

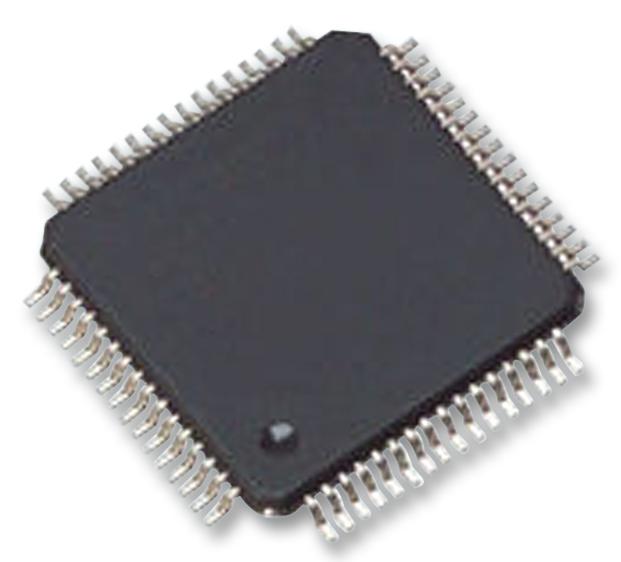

| IC Case / Package:
HTQFP
|
| No. of I/O's:
45I/O's
|
| Interfaces:
CAN, I2C, I2S, SPI, UART, USART
|
| RAM Memory Size:
96KB
|
| ADC Channels:
9Channels
|
| ADC Resolution:
16Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
3.6V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
LPC
|
| MCU Series:
LPC5500
|
| Qualification:
-
|
| MSL:
MSL 3 - 168 hours
|
Other details
| Brand |
NXP |
| Part Number |
LPC5506JBD64E |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
