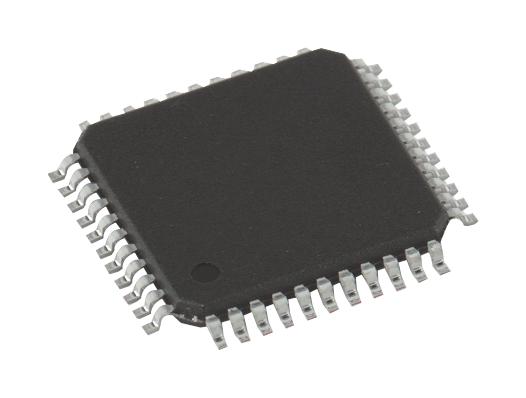

NXP LPC4330FBD144,551 ARM MCU, LPC Family LPC4300 Series Microcontrollers, ARM Cortex-M4, 32 bit, 204 MHz, 144 Pins

The LPC4330FBD144,551 is a 32-bit Microcontroller based on ARM Cortex-M4 digital signal controller with an ARM Cortex-M0 coprocessor operates at a maximum frequency of 204MHz. The ARM Cortex-M4 core offers single-cycle Multiply-Accumulate and SIMD instructions and a hardware floating-point unit to support signal processing while the M0 coprocessor handles I/O and digital control processing. The device incorporates 264kB internal RAM, two high speed USB 2.0 Host/OTG/Device, 8-channel 10-bit A/D converter, 10-bit D/A converter and 83 general-purpose I/O pins. This device also features peripherals like four UARTs, two I2C, three SPI modules and two I2S. The ARM Cortex-M0 coprocessor is code and tool compatible with the Cortex-M4 core. The Cortex-M0 coprocessor offers with a simple instruction set and reduced code size and hardware multiply is implemented as a 32-cycle iterative multiplier.

• Built-in memory protection unit (MPU) supporting eight regions
• Built-in nested vectored interrupt controller (NVIC)
• Hardware floating-point unit
• Non-maskable Interrupt (NMI) input
• JTAG and serial wire debug (SWD), serial trace, eight breakpoints and four watch points
• Enhanced trace module (ETM) and Enhanced trace buffer (ETB) support
• System tick timer
• Crystal oscillator with an operating range of 1MHz to 25MHz
• 12MHz Internal RC (IRC) oscillator trimmed to 1.5 % accuracy
• Ultra-low power real-time clock (RTC) crystal oscillator
• Serial GPIO (SGPIO) interface
• State configurable timer (SCTimer/PWM) subsystem on AHB
• Global input multiplexer array (GIMA)
• Quad SPI flash interface (SPIFI)
• 10/100T Ethernet MAC with RMII and MII interfaces and DMA support
• High-speed USB 2.0 Host/Device/OTG & high speed USB 2.0 Host/Device interface
• External memory controller (EMC)
• LCD controller with DMA support
• Secure digital Input/output (SD/MMC) card interface
• Four general-purpose timer/counters with capture and match capabilities
• Repetitive interrupt timer (RI Timer)
• Quadrature encoder interface (QEI)
• Windowed watchdog timer (WWDT)
• Brownout detect with four separate thresholds for interrupt and forced reset
• Power-on reset (POR)

Applications

Motor Drive & Control, Power Management, Logistics, RF Communications, Embedded Design & Development, Industrial, Automation & Process Control, Metering
