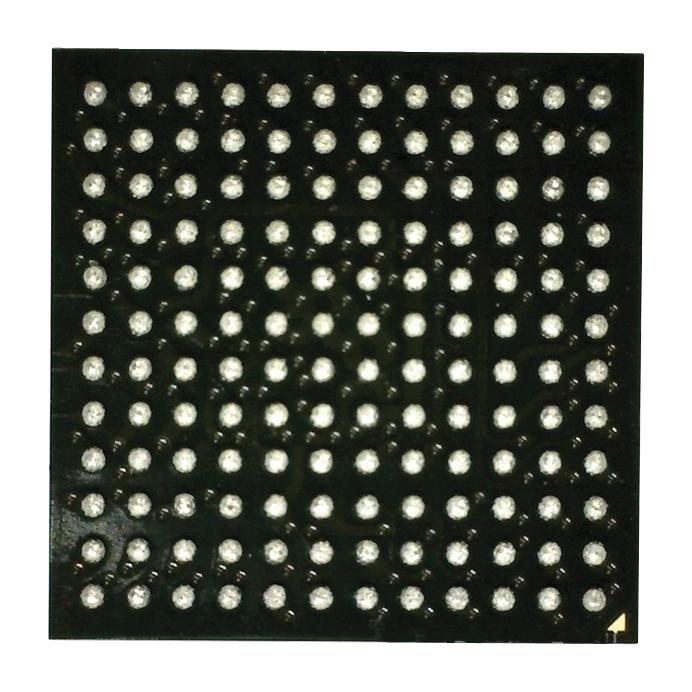

NXP LPC4076FET180551 LPC4076FET180551 ARM MCU LPC Family LPC4000 Series Microcontrollers Cortex-M4 32 bit 120 MHz 256 KB

The LPC4076FET180,551 is an ARM Cortex-M4 based digital signal controller for embedded applications requiring a high level of integration and low power dissipation. The ARM Cortex-M4 is a next generation core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration. The ARM Cortex-M4 CPU incorporates a 3-stage pipeline, uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals, and includes an internal prefetch unit that supports speculative branching.

• Targeted to operate at up to 120 MHz CPU frequency.
• One eight-channel 12-bit ADC
• Two analog comparators
• Non-maskable Interrupt input.
• JTAG and Serial Wire Debug, serial trace, eight breakpoints, and four watch points.
• Dedicated DMA controller.
• Selectable display resolution
• Supports up to 24-bit true-colour mode.
• SD/MMC memory card interface
• Two external interrupt inputs configurable as edge/level sensitive
• One motor control PWM with support for three-phase motor control
• 256KB Flash
• 80KB SRAM

Applications

Communications & Networking, Industrial, Medical, Consumer Electronics, Automotive

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	NXP
Part Number	LPC4076FET180,551
Quantity	Each
Technical Data Sheet EN
Technical Data Sheet EN
