NXP LPC2144FBD64151 ARM MCU LPC Family LPC2000 Series Microcontrollers ARM7TDMI 32 bit 60 MHz 128 KB 64 Pins

The LPC2144FBD64 is a 16-/32-bit Microcontroller based on ARM7TDMI-S CPU with real-time emulation and embedded trace support. A 128-bit wide memory interface and an unique accelerator architecture enable 32-bit code execution at maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty. The device incorporates 128kB embedded high speed flash, 16kB on-chip SRAM, 16-channel 10-bit A/D converter, 10-bit D/A converter, three 32-bit timers, PWM channels and 45 general-purpose I/O pins.

• In-system programming/In-application programming (ISP/IAP)
• EmbeddedICE RT and embedded trace interfaces
• USB 2.0 Full-speed compliant device controller with 2 kB of endpoint RAM
• Single 10-bit DAC provides variable analog output
• Two 32-bit Timers/external event counters, PWM unit and watchdog
• Low power real-time clock (RTC) with independent power and 32kHz clock input
• Multiple serial interfaces including two UARTs (16C550), two Fast I2C-bus (400 Kbit/s), SPI and SSP
• Vectored interrupt controller (VIC) with configurable priorities and vector addresses
• Up to 45 of 5V tolerant fast general purpose I/O pins
• Up to 21 external interrupt pins available
• 60MHz Maximum CPU clock available from programmable on-chip PLL
• On-chip integrated oscillator operates with an external crystal from 1MHz to 25MHz
• Power saving modes include Idle and power-down
• Individual enable/disable of peripheral functions as well as peripheral clock scaling
• Processor wake-up from Power-down mode via external interrupt or BOD
• Single power supply chip with POR and BOD circuits

Applications

Communications & Networking, Audio, Imaging, Video & Vision, Industrial, Automation & Process Control, Medical

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	NXP
Part Number	LPC2144FBD64,151
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN

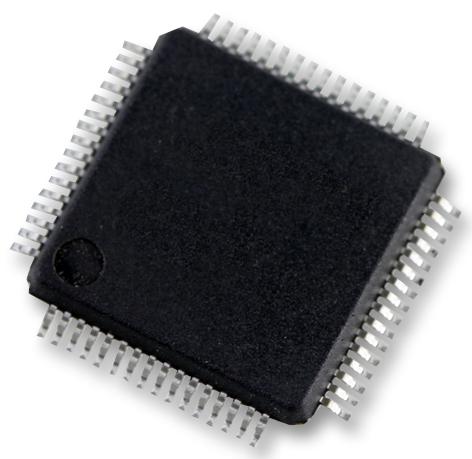

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
