Description
ARM Cortex-M3 based microcontrollers for embedded applications. It is suitable for use in industrial, consumer, white goods, RFID readers and e-metering.
- ARM Cortex-M3 built-in Memory Protection Unit (MPU) supporting eight regions
- ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)
- Non-maskable Interrupt (NMI) input
- Clock generation unit
- Configurable digital peripherals and serial interfaces
- Digital peripherals (SD/MMC card interface, Windowed watchdog timer)
- Repetitive Interrupt timer (RI timer), One Quadrature Encoder Interface (QEI)
- Unique ID for each device, Power-On Reset (POR)
- Processor wake-up from Sleep mode via wake-up interrupts from various peripherals
- Brownout detect with four separate thresholds for interrupt and forced reset
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: LPC Family LPC1800 Series Microcontrollers |
| Device Core: ARM Cortex-M3 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 180MHz |
| Program Memory Size: 1MB |
| No. of Pins: 256Pins |

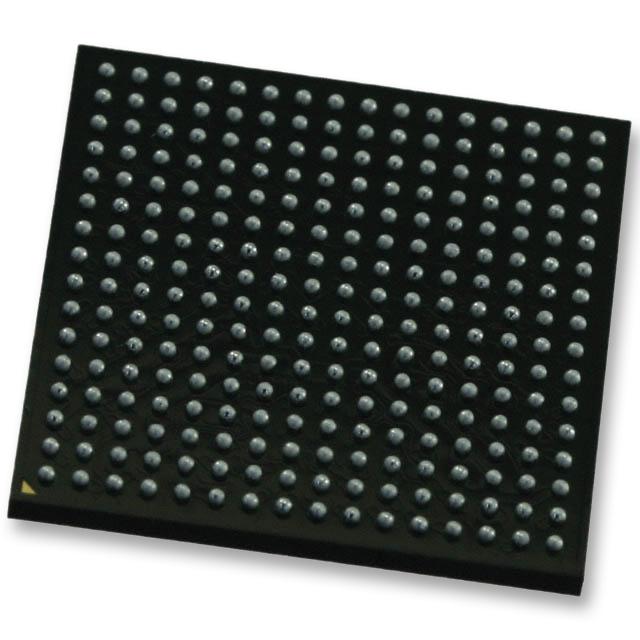

| IC Case / Package: LBGA |
| No. of I/O's: 164I/O's |
| Interfaces: CAN, I2C, I2S, SPI, UART, USB |
| RAM Memory Size: 136KB |
| ADC Channels: 16Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 2.2V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: LPC |
| MCU Series: LPC1800 |
| Qualification: - |
| MSL: - |
Other details
| Brand | NXP |
| Part Number | LPC1837FET256,551 |
| Quantity | Each |
| Technical Data Sheet EN |  |
