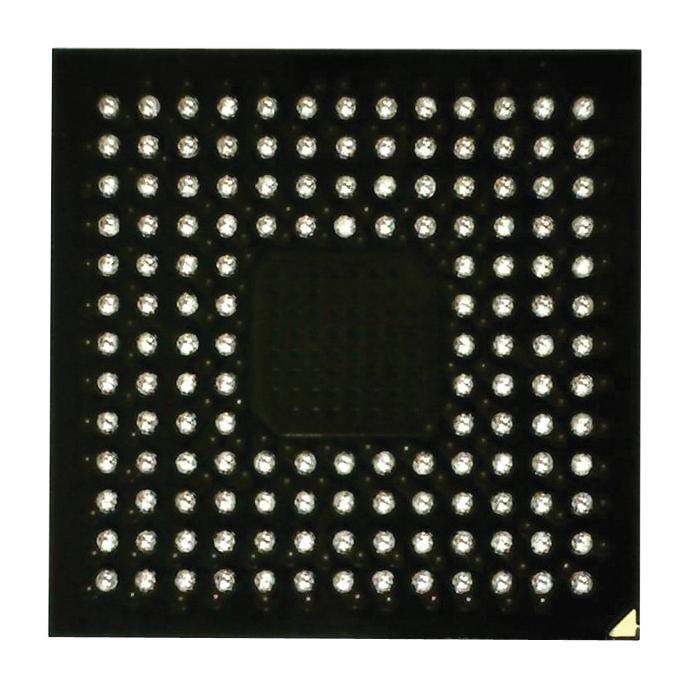

NXP LPC1768FET100551 ARM MCU LPC Family LPC1700 Series Microcontrollers Cortex-M3 32 bit 100 MHz 512 KB

The LPC1768FET100,551 is a 512kB flash 64kB SRAM Ethernet USB Cortex-M3 Microcontroller Unit for embedded applications featuring a high level of integration and low power consumption at frequencies of 100MHz. It features Ethernet MAC, USB device, 8-channel DMA controller, quadrature encoder interface, 6-output general purpose PWM, ultra-low power real-time clock with separate battery supply and up to 70 general purpose I/O pins.

• ARM Cortex-M3 built-in nested vectored interrupt controller
• 8-channel General purpose DMA controller
• Multilayer AHB matrix interconnect provides a separate bus for each AHB master
• Four UARTs with fractional baud rate generation
• One standard PWM/timer block with external count input
• Watchdog timer
• Standard JTAG test/debug interface
• Integrated PMU (power management unit)

Applications

Metering, Lighting, Communications & Networking, Industrial, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	NXP
Part Number	LPC1768FET100,551
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
