NXP LPC1518JBD64E ARM MCU LPC Family LPC1500 Series Microcontrollers Cortex-M3 32 bit 72 MHz 128 KB

The LPC1518JBD64E is a 32-bit Microcontroller based on ARM Cortex-M3 core with RISC architecture operates at a maximum frequency of 72MHz. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching. The device incorporates 128kB internal flash, 20kB internal RAM, 4kB EEPROM, two 12-channel 12-bit A/D converter with sample rates of up to 2Msps and 46 general-purpose I/O pins. This device also features peripherals like one full-speed USB 2.0 device, two SPI interfaces, three USARTs, a fast-mode plus I2C-bus interface and a CAN module.

• ARM Cortex-M3 built-in nested vectored interrupt controller (NVIC)
• System tick timer
• Serial wire debug (SWD) with four breakpoints and two watch points
• Single-cycle multiplier supported
• Memory protection unit (MPU) included
• Simple DMA engine with 18 channels and 20 programmable input triggers
• GPIO Interrupt generation capability with boolean pattern-matching feature on eight external inputs
• Two GPIO Grouped port interrupts
• Switch matrix for flexible configuration of each I/O pin function
• CRC Engine
• Quadrature encoder interface (QEI)
• 24-bit 4-channel Multi-rate timer (MRT)
• Repetitive interrupt timer for general purpose use
• Windowed watchdog timer (WWDT)
• 12MHz Internal RC oscillator trimmed to 1 % accuracy
• Crystal oscillator with an operating range of 1MHz to 25MHz
• Integrated PMU (power management unit)
• Reduced power modes - Sleep mode, deep-sleep mode, power-down mode and deep power-down mode
• Wake-up from deep-sleep and power-down modes
• Timer-controlled self wake-up from Deep power-down mode

Applications

Motor Drive & Control, Power Management, Industrial, Medical, Consumer Electronics, Automation & Process Control, Building Automation

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	NXP
Part Number	LPC1518JBD64E
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN

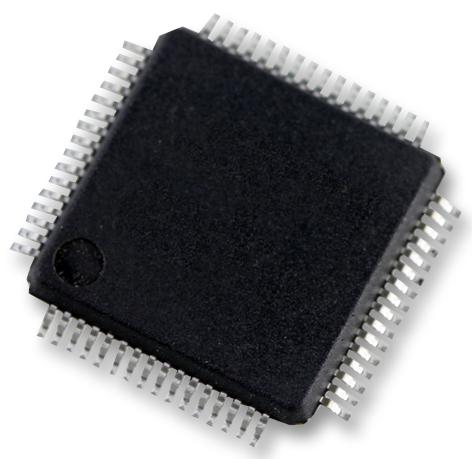

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
