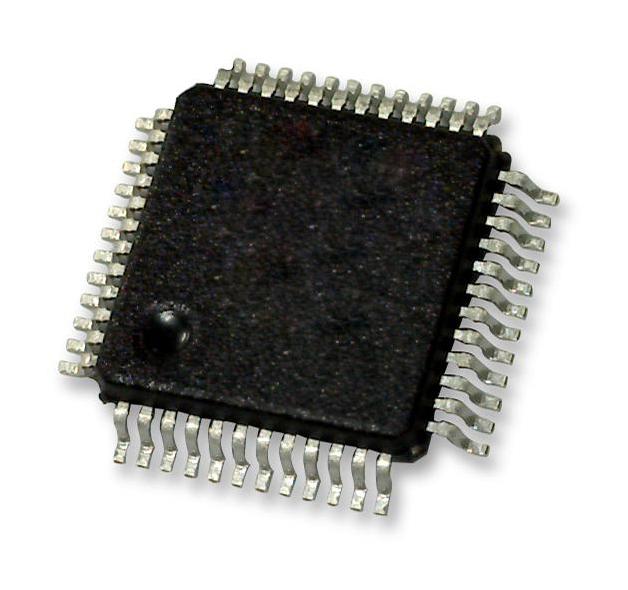

NXP LPC1313FBD48/01,15 ARM MCU, LPC Family LPC1300 Series Microcontrollers, ARM Cortex-M3, 32 bit, 72 MHz, 32 KB, 48 Pins

The LPC1313FBD48/01 is a 32-bit Microcontroller based on ARM Cortex-M3 core with RISC architecture operates at a maximum frequency of 72MHz. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching. The device incorporates 32kB internal flash, 8kB internal RAM, 8-channel 10-bit A/D converter and 42 general-purpose I/O pins.

• ARM Cortex-M3 built-in nested vectored interrupt controller (NVIC)
• In-system programming (ISP) and In-application programming (IAP)
• Programmable windowed watchdog timer (WWDT)
• UART with fractional baud rate generation, modem, internal FIFO and RS-485/EIA-485 support
• SSP controller with FIFO and multi-protocol capabilities
• Four general purpose counter/timers
• Programmable watchdog timer (WDT)
• Power profiles residing in boot ROM
• System tick timer
• Serial wire debug and serial wire trace port
• High-current output driver (20mA) on one pin
• High-current sink drivers (20mA) on two I2C-bus pins in fast-mode Plus
• Integrated PMU (power management unit)
• Three reduced power modes - sleep, deep-sleep and deep power-down
• GPIO pins can be used as edge and level sensitive interrupt sources
• Clock output function with divide
• Processor wake-up from deep-sleep mode
• Brownout detect with four separate thresholds
• Power-on reset (POR)
• Integrated oscillator with an operating range of 1MHz to 25MHz

Applications

Metering, Lighting, Security

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
