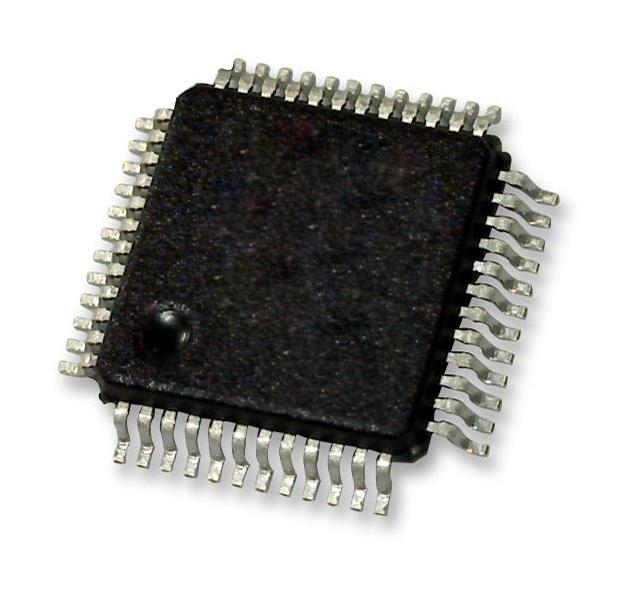

LPC11U68JBD48K is a LPC11U6x series scalable entry level 32-bit Microcontroller (MCU) based on ARM Cortex-M0+/M0 Cores. The ARM Cortex-M0+ is an easy-to-use, energy-efficient core using a two-stage pipeline and fast single-cycle I/O access. The peripheral complement of the LPC11U6x includes a DMA controller, a CRC engine, one full-speed USB device controller with XTAL-less low-speed mode, two I2C-bus interfaces, USARTs, two SSP interfaces, PWM/timer subsystem with six configurable multi-purpose timers, eight 12-bit ADC, temperature sensor, function-configurable I/O ports, and up to 34 general-purpose I/O pins. Typical applications include three-phase e-meter, Car radio, GPS tracker, medical monitor, gaming accessories, PC peripherals.
- Single power supply 2.4V to 3.6 V
- ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)
- AHB Multilayer matrix and Micro Trace Buffer (MTB) supported
- Support up to 256KB of flash memory, 4KB EEPROM and 36KB of SRAM
- ROM API support (boot loader, USART drivers, I2C drivers, USB drivers and DMA drivers)
- Windowed WatchDog timer (WWDT)
- Unique device serial number for identification
- Separate VBAT supply for RTC
- 48 pin LQFP package
- Operating temperature range from -40°C to 105°C
Product details
| Product Range:
LPC Family LPC1100 Series Microcontrollers
|
| Device Core:
ARM Cortex-M0+
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
50MHz
|
| Program Memory Size:
256KB
|
| No. of Pins:
48Pins
|
| IC Case / Package:
LQFP
|
| No. of I/O's:
34I/O's
|
| Interfaces:
I2C, SPI, USART, USB
|
| RAM Memory Size:
36KB
|
| ADC Channels:
8Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
2.4V
|
| Supply Voltage Max:
3.6V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
LPC
|
| MCU Series:
LPC1100
|
| Qualification:
-
|
Other details
| Brand |
NXP |
| Part Number |
LPC11U68JBD48K |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
