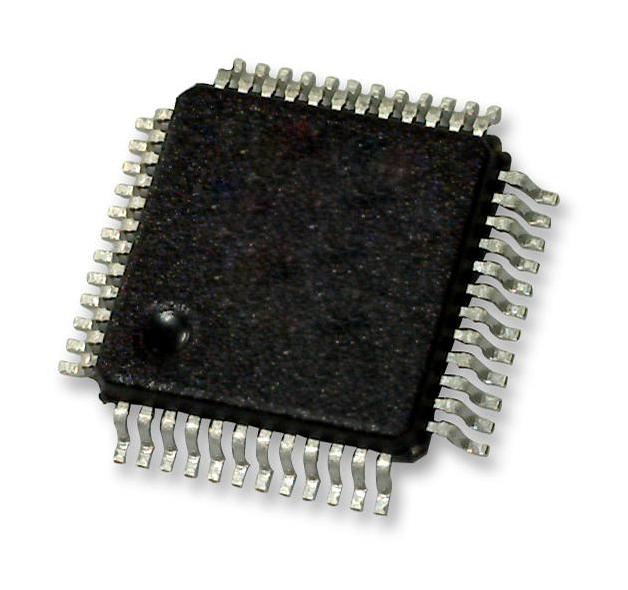

LPC1113FBD48/303,1 is a LPC1100XL series, ARM Cortex-M0 based, low-cost 32bit microcontroller (MCU) designed for 8/16bit microcontroller applications. Offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC1100XL series include the power profiles, a windowed watchdog timer, and a configurable open-drain mode. Typical applications include eMetering, lighting, alarm systems and white goods.
- Single power supply 1.8V to 3.6V
- ARM Cortex-M0 processor, running at frequencies of up to 50MHz and ARM Cortex-M0 built-in NVIC
- Non-Maskable Interrupt (NMI) input selectable from several input sources
- Serial wire debug and system tick timer
- 24KB on-chip flash programming memory, 8KB total SRAM and 256 byte page erase function
- In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software
- 42 pin GPIO can be used as edge and level-sensitive interrupt sources
- UART, I2C fast+, 2 SPI, 8 ADC channel
- 48 pin LQFP package
- Temperature range from -40°C to +85°C
Product details
| Product Range:
LPC Family LPC1100XL Series Microcontrollers
|
| Device Core:
ARM Cortex-M0
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
50MHz
|
| Program Memory Size:
24KB
|
| No. of Pins:
48Pins
|
| IC Case / Package:
LQFP
|
| No. of I/O's:
42I/O's
|
| Interfaces:
I2C, SPI, UART
|
| RAM Memory Size:
8KB
|
| ADC Channels:
8Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
3.6V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
LPC
|
| MCU Series:
LPC1100XL
|
| Qualification:
-
|
Other details
| Brand |
NXP |
| Part Number |
LPC1113FBD48/303,1 |
| Quantity |
Each |
