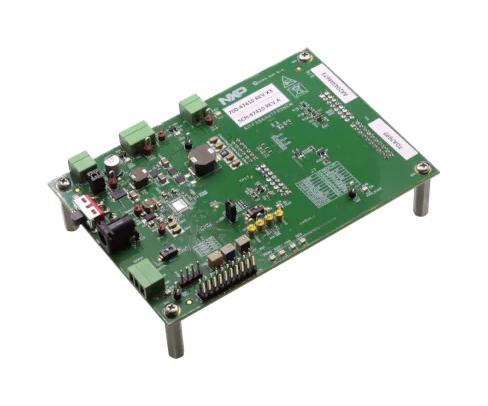

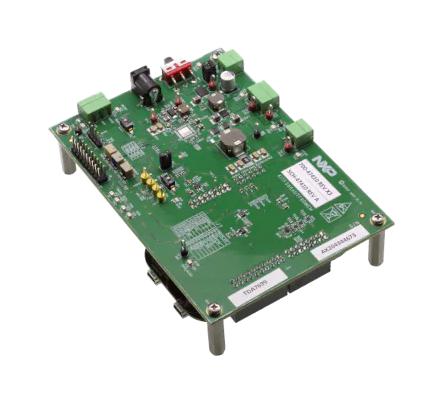

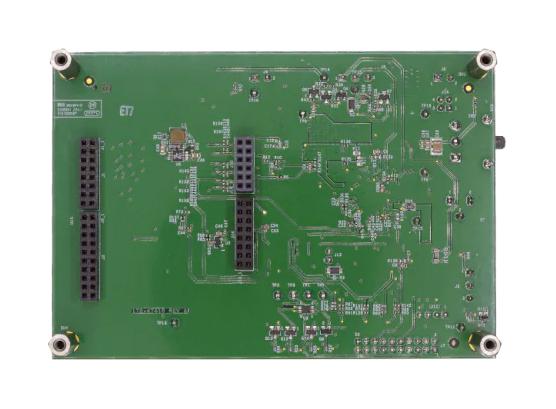

NXP KITFS86AUTFRDMEM Evaluation Board FS86 Power Management Safety System Basis Chip

KITFS86AUTFRDMEM provides easy customer development of the FS86 device family with flexibility to play with all the features of the device and make measurements on the main part of the application. All regulators are accessible through connectors. Non user signals, like DC / DC switcher node, are mapped on test points. It targets 12V automotive applications. The KL25Z Freedom connected to the board, combined with the FS86 NXP GUI software, allows to fully configure and control FS86 SBC. The board can be used in a standalone mode and controlled with an USB interface. This board is populated with a FS86 family superset part for device evaluation. The FS86 part soldered on the board can be programmed (OTP) two times and it is possible to test as many configurations as needed in emulation mode before and after programming. No extra tools or board are needed for device programming.

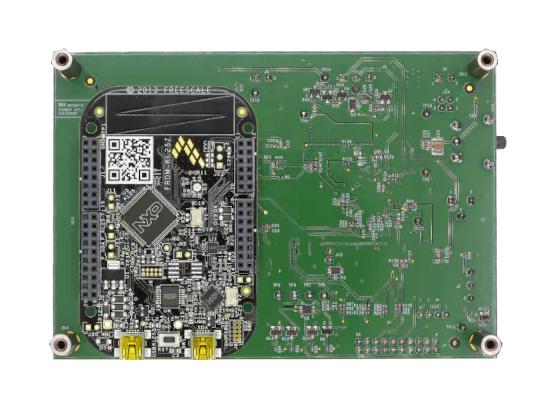

• FRDM-KL25Z MCU plugged allows USB connection for easy connection to software GUI
• USB connection for register access, OTP emulation and fuse
• Socket to fit and remove device easily
• VBAT power supply connectors (Jack and Phoenix, 35V max)
• VPRE output capability up to 10A (external MOSFET)
• VBOOST 5.0V or 6.0V, up to 800mA
• BUCK up to 2.5A DC
• Debug mode access
• Manual or automated OTP fuse programming
• Connectors allowing easy access to digital signals

Contents

KITFS86AUTFRDMEM board, FRDM-KL25Z, Power supply mating connectors, USB mini cable type A male / Type B male.

Other details

Brand	NXP
Part Number	KITFS86AUTFRDMEM
Quantity	Each
