K32W1480VFTBT is a K32W14x family ultra-low-power, highly secure, multiprotocol wireless MCU. This low-power, highly secure, single chip multiprotocol wireless MCU that integrates a high performance Bluetooth Low Energy version 5.3 radio and an IEEE 802.15.4 radio supporting thread, matter and zigbee. The K32W14x implements a tri-core architecture to isolate the connectivity, computing and security capabilities. The multiprotocol radio is energy efficient, supports full simultaneous dualPAN to enable Thread and Zigbee, and designed for Wi-Fi coexistence. The radio is supported with tested software stacks for Matter, Thread, Zigbee and Bluetooth Low Energy for standalone and hosted applications to enable a range of IoT and industrial applications. Target applications include smart home IoT and industrial/IoT.
- Up to 96MHz Arm Cortex®-M33 core
- TrustZone-M, IEEE 754 FPU, DSP, MPU, NVIC, SysTick
- 8KB code cache to improve performance and efficiency, 1MB flash memory, 128KB SRAM
- Secure boot ROM, secure boot and debug
- Advanced flash access protection, hardware encryption and decryption
- DC/DC voltage range from 1.71V to 3.6V, bypass voltage range from 1.71V to 3.6V
- Bluetooth LE 5.3, thread, Zigbee, matter protocol
- IEEE 802.15.4 radio, Bluetooth low energy radio core
- Support for secure over-the-air (OTA) firmware updates

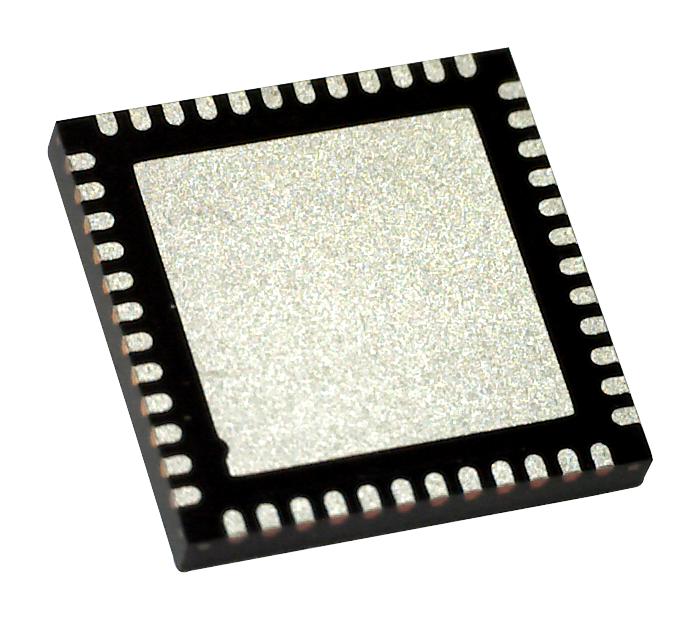

- 48-pin HVQFN package, industrial temperature range from -40°C to +105°C
Other details
| Brand |
NXP |
| Part Number |
K32W1480VFTBT |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
