NXP FRDMGD3160HB8EVM Evaluation Kit GD3160 Power Management Gate Driver New

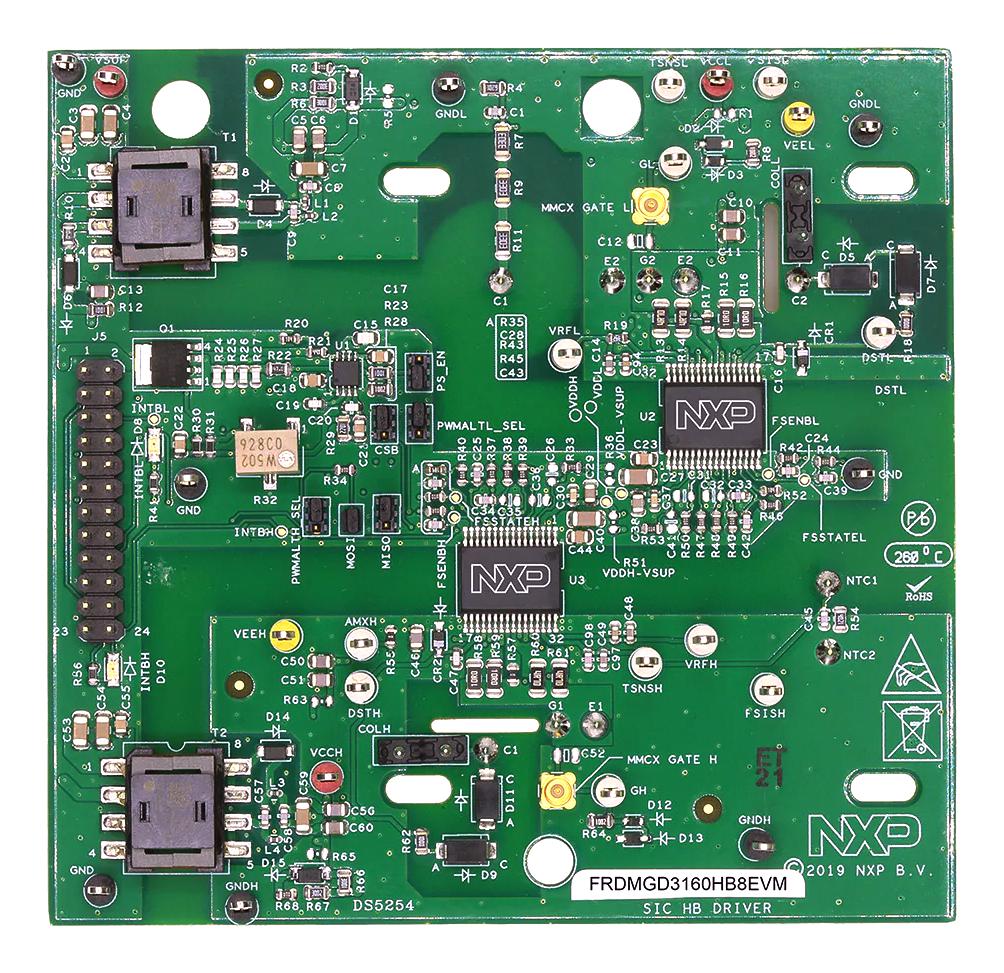

FRDMGD3160HB8EVM is a half-bridge evaluation kit populated with two GD3160 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z MCU hardware for interfacing a PC installed with FlexGUI software for communication to the SPI registers on the GD3160 gate drive devices in either daisy chain or standalone configuration. The evaluation kit is designed to connect to for example a Starpower MD816HTC120P6HE or an Infineon FS03MR12A6MA1B for half-bridge evaluations and applications development. The KITGD316xTREVB translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and GD3160 gate drivers.

• Compatible with Starpower MD816HTC120P6HE and Infineon FS03MR12A6MA1B
• FlexGUI available for use with kit
• Daisy chain SPI interface configurability
• Easy to configure jumper options
• SPI configurable register options using FlexGUI
• Double pulse and short circuit evaluations
• Translator board to translate 3.3 V signals to 5.0 V signals between the MCU and GD3160 gate drivers

Contents

Assembled and tested FRDMGD3160HB8EVM board in an anti-static bag, 3.3 V to 5.0 V GD31xx translator board connected to FRDM-KL25Z, USB cable, type A male/type mini-B male, 3 ft, 1.27 mm jumpers for configuration (included with kit boards), Quick Start Guide.

Other details

Brand	NXP
Part Number	FRDMGD3160HB8EVM
Quantity	Each
User Manual EN
