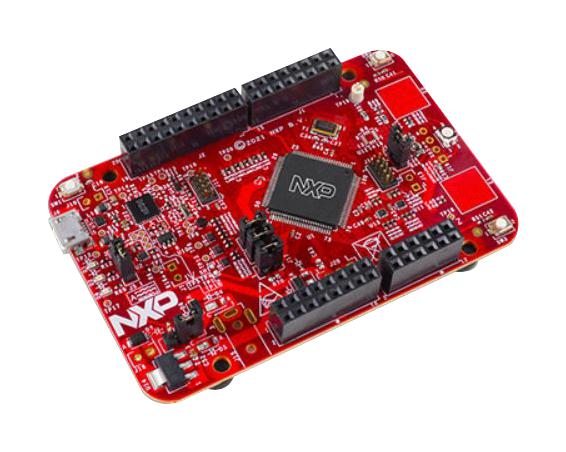

FRDM-KE17Z freedom board is designed to work in standalone mode or as the main board of FRDM-TOUCH, FRDM-MC-LVBLDC and Arduino® boards. This Freedom board is compatible with DC 5V and 3.3V power supply and features a KE17Z, a device boasting up to 256KB Flash and 48KB SRAM and numerous analogue and digital peripherals. The on-board interfaces include an RGB LED, an ambient temperature sensor, two capacitive touchpads. An area is reserved for populating a 6-axis digital sensor, a 3-axis digital angular rate gyroscope.
- MKE17Z256VLL7 MCU (Arm® Cortex®-M0+)
- I/O headers for easy access to MCU I/O pins
- On-board debug circuit: K20DX128VFM5 (OpenSDA) with a virtual serial port
- NXP inertial sensor, FXOS8700CQ (DNP)
- Thermistor, reset push button, two user buttons and one RGB LED
- Two touch electrodes in the self-capacitive mode
Contents
FRDM-KE17Z, Quick start guide, Supporting cable.
Product details
| Silicon Manufacturer |
NXP |
| No. of Bits |
32bit |
| Silicon Family Name |
Kinetis - E |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M0+ |
| Silicon Core Number |
MKE12Z, MKE13Z, MKE17Z |
| Kit Contents |
Development Platform MKE12Z, MKE13Z, MKE17Z, Quick Start Guide, Supporting Cable |
| Product Range |
- |
Other details
| Brand |
NXP |
| Part Number |
FRDM-KE17Z |
| Quantity |
Each |
| User Manual EN |
 |
