Description
Product Overview

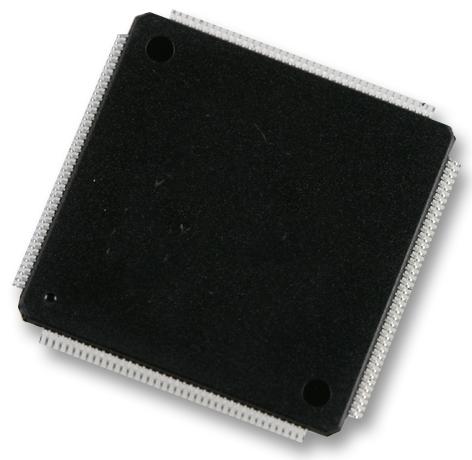

The DSP56F807PY80E is a Digital Signal Controller combines the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip. This creates an extremely cost-effective solution for servo and motor control, power inverter and converter applications. The 56800 core is based on a Harvard-style architecture consisting of three execution units which operate in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP-and MCU-style applications. The instruction set is also highly efficient for C compilers, enabling rapid development of optimized control applications.
- Advanced pulse width modulation
- Dual analog to digital converters
- Programmable 16-bit timers
- 8MHz crystal oscillator and PLL with integrated pre- and post-scalers
- On-board power conversion and management
- NXP scalable CAN module
- Serial communications interface module (SCI)
- Serial peripheral interface module (SPI)
- JTAG/OnCE debug programming interface
Applications
Signal Processing
Product details
Other details
| Brand | NXP |
| Part Number | DSP56F807PY80E |
| Quantity | Each |
| Technical Data Sheet EN |  |
