Description
The IL422E is a galvanically isolated RS422 high-speed Differential Bus Transceiver Interface designed for bidirectional data communication on balanced transmission lines. This has current limiting and thermal shutdown features to protect against output short circuits and bus contention situations that could cause excessive power dissipation.
- 25ns Maximum propagation delay
- 25Mbps Data rate
- ±60mA Driver output capability
- Thermal shutdown protection
- Low EMC footprint
- -40 to 85°C Temperature range
- PROFIBUS international component recognition
Applications
Communications & Networking
Product details
| Operating Temperature Min | -40°C |
| Driver Case Style | SOIC |
| No. of Receivers | 1Receivers |
| Operating Temperature Max | 85°C |
| No. of Pins | 16Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| No. of Drivers | - |
| Supply Voltage Min | 4.5V |
| IC Interface Type | RS422, RS485 |
| Device Type | RS422 Transceiver |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | MSL 2 - 1 year |
Other details
| Brand | NVE |
| Part Number | IL422E |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

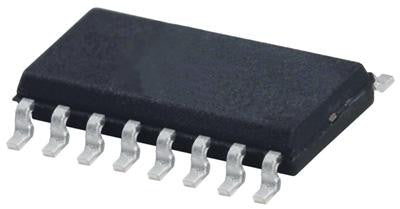

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
