- Load Capacity: 26 lb
- Height: 4.6"
- Weight: 2.1 lb
- 360° Panning Base
- Advanced Friction Control
- Three 90° Notches
- Bubble Level
- Made in Germany

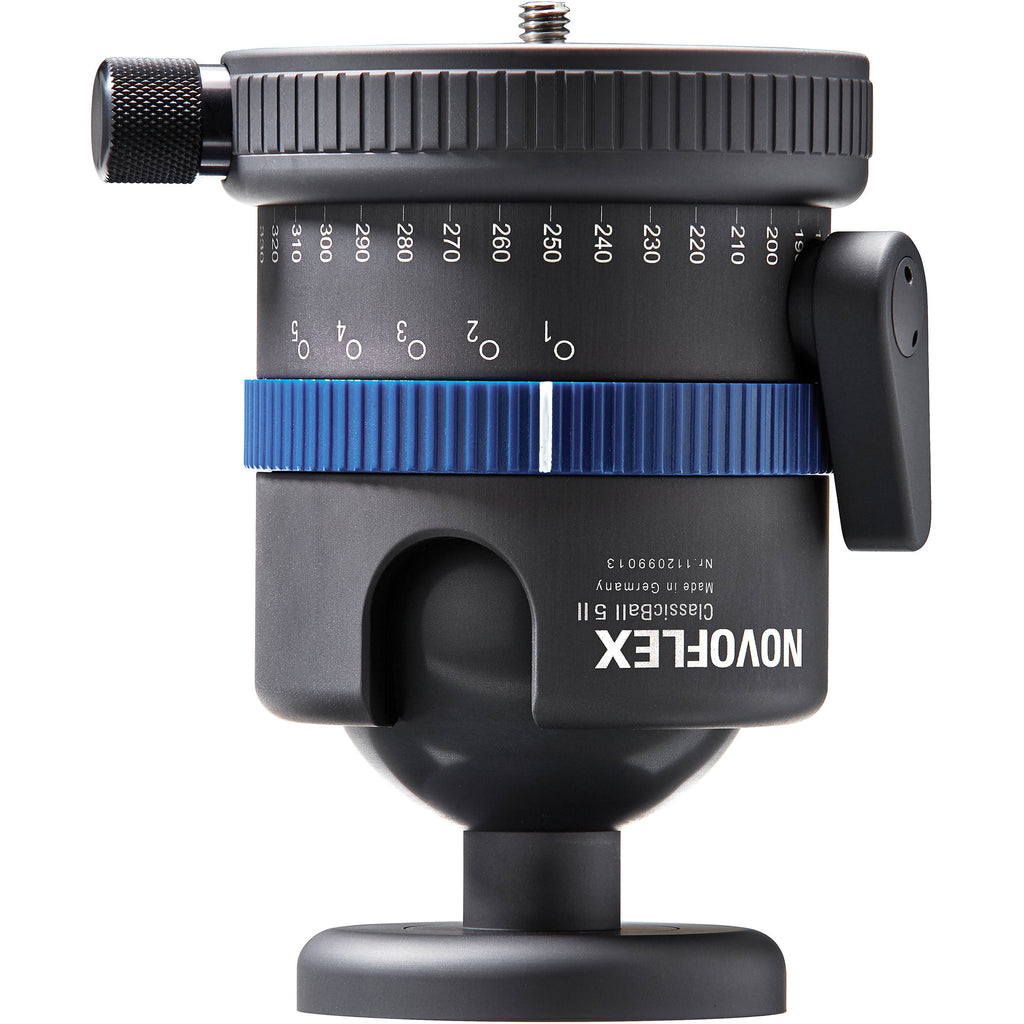

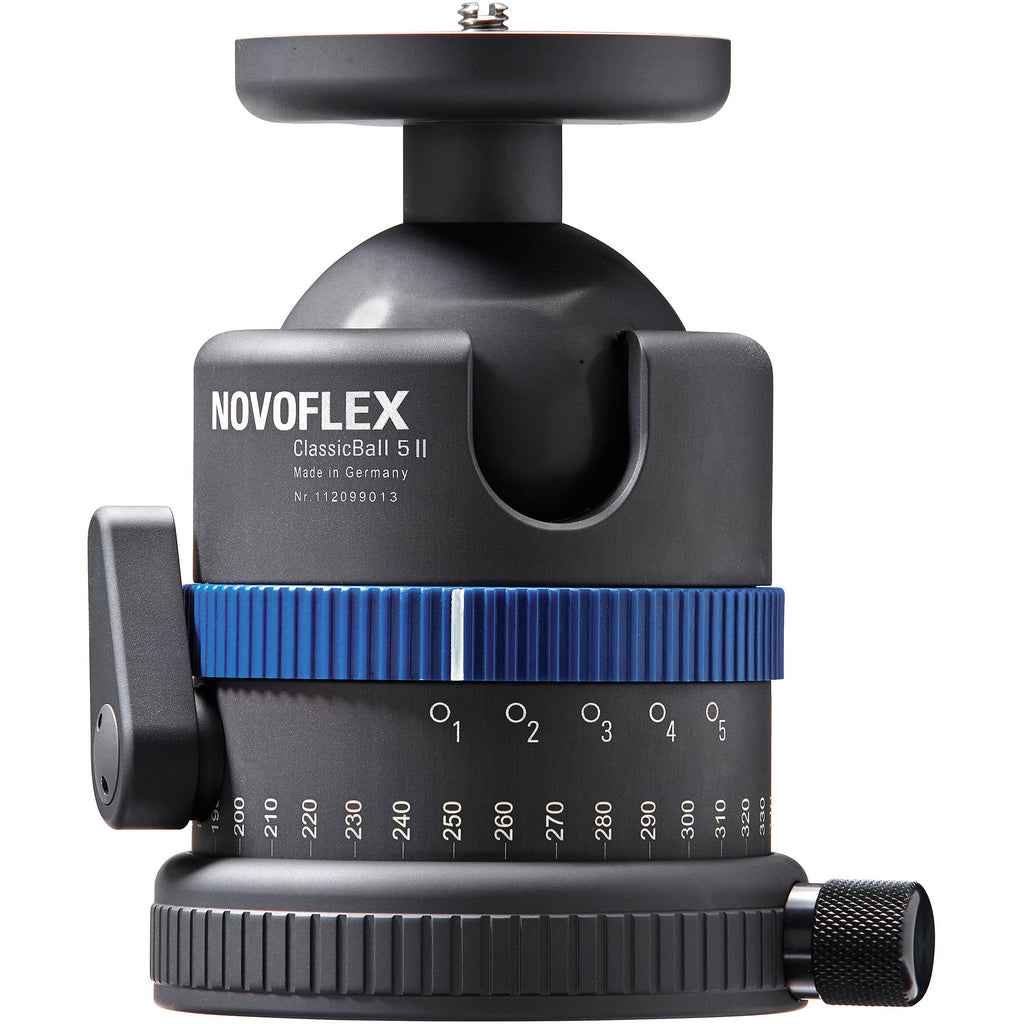

The ClassicBall 5 II Ball Head from Novoflex is a dual-purpose support which acts both as a standard ball head, and also as a leveling base for panoramic photography. To utilize the head as a panning base the head must be mounted to a tripod or similar support in the upside down position. This configuration enables the mounting base to be leveled using the ball, ensuring properly aligned panoramic images, confirmed by the built-in bubble level. The ClassicBall 5 II can support up to 26 lb, stands 4.6" high, and weighs just 2.1 lb.
A matte titanium finish and an all-metal design blend both form and function, and three 90° notches add to the versatility of the ball head, allowing the camera to tilt 180° in three separate positions. Advanced Friction Control allows you to adjust the amount of tension on the ball by turning a center ring on the ball head. The grease-and-lubricant-free design prevents the ball and enclosure from attracting unwanted dust, dirt, and debris.
- Three vertical 90° notches for the ball neck
- AFC (Advanced Friction Control) system for precisely repeatable and defined friction preset
- No change of ball position during locking, thanks to the design of the ball interior
- Integrated 360° panning and 2 camera threads (1/4"-20 and 3/8"-16)
- Matte titanium finish
- All-metal design incorporating advanced polymer materials
- Grease-free ball support
- Made in Germany
| Load Capacity | 26 lb (12 kg) |
| Base Diameter | 3.07" (78 mm) |
| Spirit Level | Yes |
| Tension Control | Yes |
| Separate Panning Lock | Yes |
| Tripod Mount Thread Size | 3/8"-16 with 1/4"-20 bushing adapter |
| Camera Mount Thread Size | 1/4"-20 and 3/8"-16 |
| Height | 4.6" (117.5 mm) |
| Weight | 2.1 lb (970 g) |
| Packaging Info |
| Package Weight | 2.6 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.5 x 4.2" |
In the Box
Novoflex ClassicBall 5 II Ball Head
- 1/4"-20 Bushing Adapter
- Allen Wrench
- Limited 2-Year Warranty
