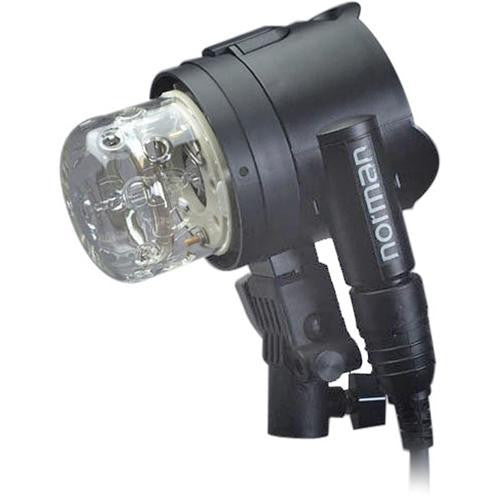

The IL2500 is Norman's finest lamphead, featuring a maximum output of 2500 w/s. This unit is compact, highly efficient, and features thermostatic cutoff in case of a fan failure. It includes a quick disconnect cable, full vertical tilt capability, snap in arc-resistant connectors, high-impact 400� rated housing, a 20'cable, fan cooling, improved modeling accuracy, 115/230V operation, long-life UV coated quartz flashtube, easy-to-reach modeling lamp switch and numerous accessory items.
It is the ultimate lamphead for all Norman Series 900 power supplies; P12/12, P24/24, P40/40, P800D, P2000D and all previous Series 900 units. Plug in the FQ5-UV flashtube and use the IL2500 with all Norman studio reflectors. Spring pin mounted reflectors are "type 1" and the Illuminator precision-mounted reflectors are "type 2". Both types fit the Illuminator 2500. A power supply for this flash head is required.
- Compact Design
- Tilt-control, and umbrella receptor located near each other.
The housing is also contoured to provide a built-in carrying handle.
- Easy to Control
- The moon-shaped housing enables this unit to tilt full vertical without obstruction from the bracket.
- Easily Replaceable Flashtube
- 2500w/s plug-in vented UV coated quartz flashtube.
- Fan Cooled
- Forced Air Fan cooling for better performance and longer life, especially when using softboxes.
- Removeable Reflector
- Both Type 1 and Type 2 Norman reflectors can be used
- Modeling Light
- Norman lampheads feature halogen modeling lights that burn brighter and last significantly longer than a non-halogen incandescent bulb.
- Long-Reaching Cable
- The 20' detachable cable included. Minimizes the need for extension cables. However, additional 20' cables may be added when the head is uesed at longer distances from the power pack.
UPC: 686970170815
In the Box
Norman IL2500 - 2500 Watt/Second Studio Lamphead
- 20' R2000 detachable lamphead cable
- UV Coated Quartz Flashtube (FQ5UV)
- 250W Quartz Halogen Modeling Lamp (ESS)
- Quick-disconnect R9112 Reflector Ring
- 2 year Warranty
| Maximum Watt/Seconds | 2400 Watt/Seconds |
| User Replaceable Flashtube | Yes (FQ5UV) |
| Changeable Reflector | Yes, Norman series 900 Reflectors |
| Circuit Protection | Fuse |
| Cable Length | 20' (6M) |
| Modeling Light Wattage | 250W, 120V |
| Modeling Light On/Off Switch | Yes |
| Protective Glass Dome | Yes |
| Fan Cooled | Yes |
| Dimensions | 6.5 x 4.5 x 7" (16.5 x 11.4 x 17.7 cm) |
| Weight | 1.8lbs (.82 kg) |
| Packaging Info |
| Package Weight | 5.2 lb |
| Box Dimensions (LxWxH) | 11.0 x 10.2 x 6.5" |
