Description

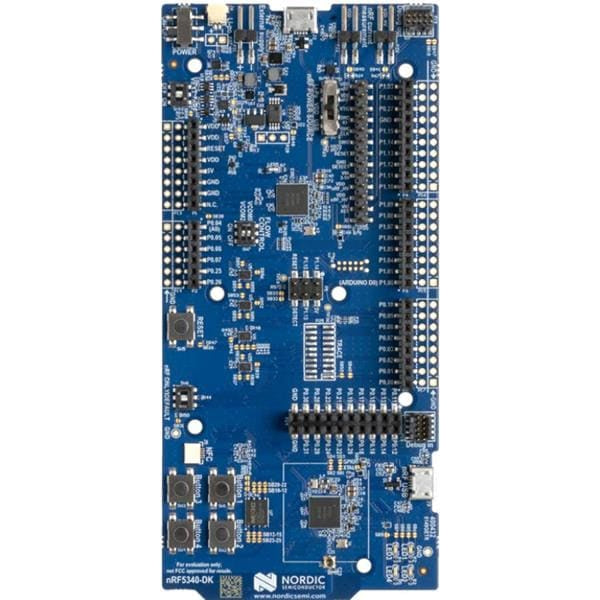

The Nordic Semiconductor nRF5340 Audio Development Kit is a platform designed for BLUETOOTH® "LE Audio," including everything needed to start development.
Features & Specs
- nRF5340 SoC
- High-performance application processor
- 128MHz/64MHz Arm® Cortex-M33 with FPU and DSP instructions
- 1MB Flash + 512KB RAM
- Fully programmable, ultra-low-power network processor
- 64MHz Arm Cortex®-M33 with 2KB instruction cache
- 256KB Flash and 64KB RAM
- Arm® TrustZone® and Arm CryptoCell-312
- Trusted execution, root-of-trust, secure key storage
- Bluetooth Low Energy
- LE Audio
- 2Mbps, Advertising extensions, and long-range
- NFC
- Full range of digital interfaces with EasyDMA
- 96MHz encrypted QSPI for external memory
- 32MHz high-speed SPI for displays and fast sensors
- 4x UART/SPI/TWI, UART/SPI/TWI
- 12Mbps full-speed USB, I²S, PDM, 4x PWM, 2x QDEC
- 12-bit 200ksps ADC
- 105°C extended operating temperature
- 1.7V to 5.5V supply voltage range NFC
- nRF5340 Audio DK
- Bluetooth LE Audio support
- Based on our nRF5340 SoC
- 2.4GHz antenna
- Two 3.5mm audio jacks
- Cirrus Logic Audio DSP CS47L63
- SWF RF connector for direct RF measurements
- 5 user-programmable buttons
- 4 user-programmable LEDs
- SEGGER J-Link debugger onboard
- Pins for measuring power consumption
- SD-Card holder for additional storage
Features & Specs
- nRF5340 SoC
- High-performance application processor
- 128MHz/64MHz Arm® Cortex-M33 with FPU and DSP instructions
- 1MB Flash + 512KB RAM
- Fully programmable, ultra-low-power network processor
- 64MHz Arm Cortex®-M33 with 2KB instruction cache
- 256KB Flash and 64KB RAM
- Arm® TrustZone® and Arm CryptoCell-312
- Trusted execution, root-of-trust, secure key storage
- Bluetooth Low Energy
- LE Audio
- 2Mbps, Advertising extensions, and long-range
- NFC
- Full range of digital interfaces with EasyDMA
- 96MHz encrypted QSPI for external memory
- 32MHz high-speed SPI for displays and fast sensors
- 4x UART/SPI/TWI, UART/SPI/TWI
- 12Mbps full-speed USB, I²S, PDM, 4x PWM, 2x QDEC
- 12-bit 200ksps ADC
- 105°C extended operating temperature
- 1.7V to 5.5V supply voltage range NFC
- nRF5340 Audio DK
- Bluetooth LE Audio support
- Based on our nRF5340 SoC
- 2.4GHz antenna
- Two 3.5mm audio jacks
- Cirrus Logic Audio DSP CS47L63
- SWF RF connector for direct RF measurements
- 5 user-programmable buttons
- 4 user-programmable LEDs
- SEGGER J-Link debugger onboard
- Pins for measuring power consumption
- SD-Card holder for additional storage
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 29777.3 |
| 3-5 | ₹ 29473.45 |
| 5-10 | ₹ 28865.75 |
| 10+ | ₹ 28258.05 |
Bulk discount will be automatically applied during checkout based on quantity.
