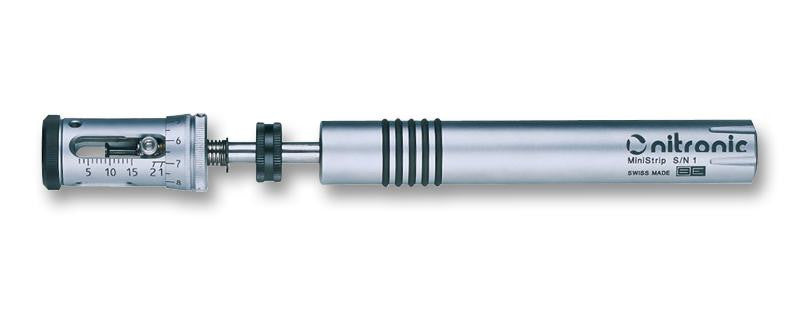

The MINISTRIP from Nitronic is a high precision stripping tool. It is specially designed for thin cables. It has patented four blade system which provides accurate and exactly repeated stripping of cables. The coating is removed by cutting with rotating blades and strip-off in one single step. This innovative procedure allows processing of fibre optic cables, coaxial and PTFE coated cables. Precision blade diameter control with micrometer scale allows quick set up of diameter. The locking screw of diameter adjusting systems makes the tool available even for military (mil spec) application. The high quality of this product provides precise repetitiveness.
- Wire size range from 0.16mm to 1.5mm (15AWG to 34AWG)
- Maximum outer cable diameter of 2.5mm
- Stripping length up to 15mm
- Four cutting blades on one plane
- No wire damage
- Rotating cut
- Fast and easy change of length and diameter
- No power supply is required
- Blades are easily replaceable
- Suitable for PTFE, PVC, kaynor and kapton isolation
Product details
| Stripping Capacity Metric |
0.16mm to 1.5mm |
| Product Range |
- |
| For Use With |
PVC, PTFE, Kynar & Polyimide Film Cables |
Other details
| Brand |
NITRONIC |
| Part Number |
MINISTRIP |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
| TechCast Product EN |
|
