Description
Nimbus WiMi6220 Overview

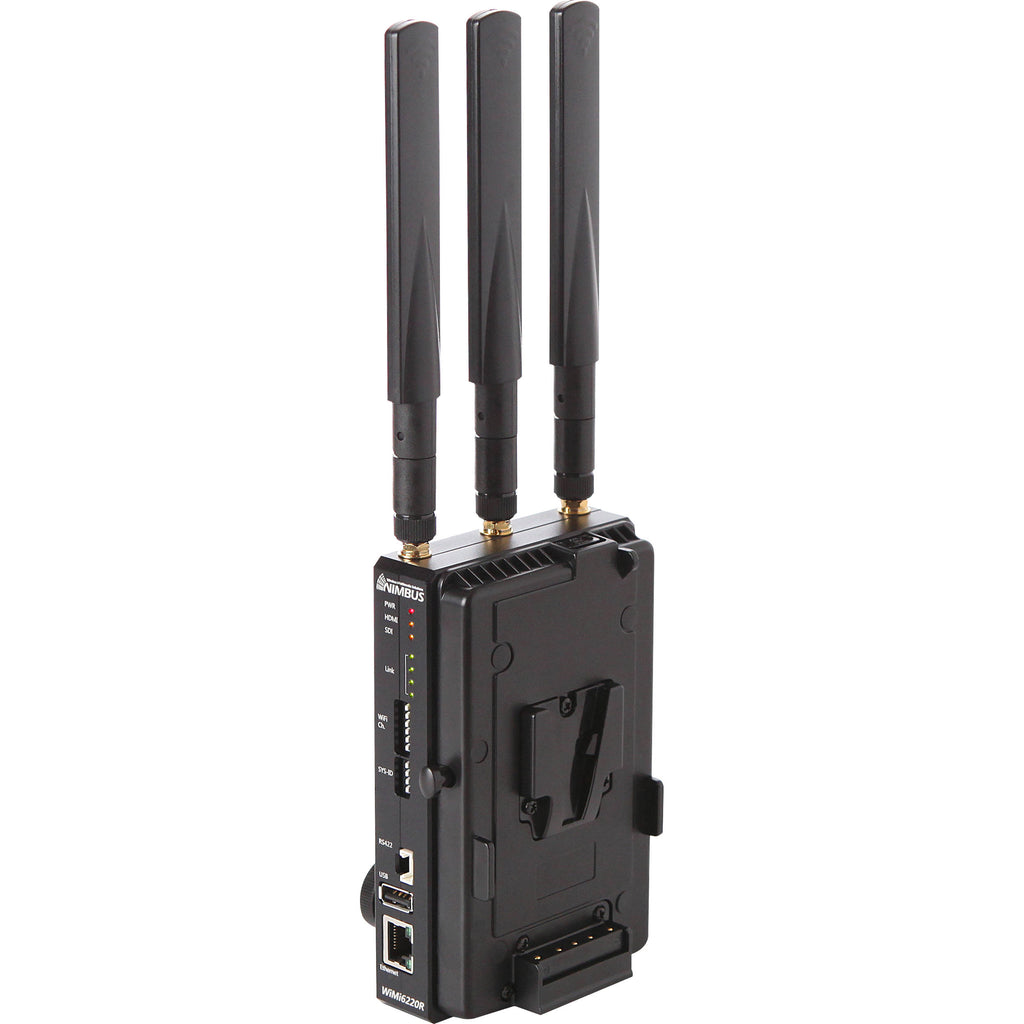

The WiMi6220 Wireless 3G-SDI & HDMI H.264 Decoder/Receiver from Nimbus pairs with an optional WiMi6220 transmitter as a point-to-point Wi-Fi transmission system with a 4921' range and only 80ms latency. With both units featuring built-in 5 GHz Wi-Fi, no additional network connection is required.
The receiver accepts up to a 1080p60 SDI or HDMI signal encoded in H.264 by the transmitter, and it decodes and outputs it as video. Up to four receivers can be paired to a single transmitter for multicasting over the same range and with the same near-zero delay.

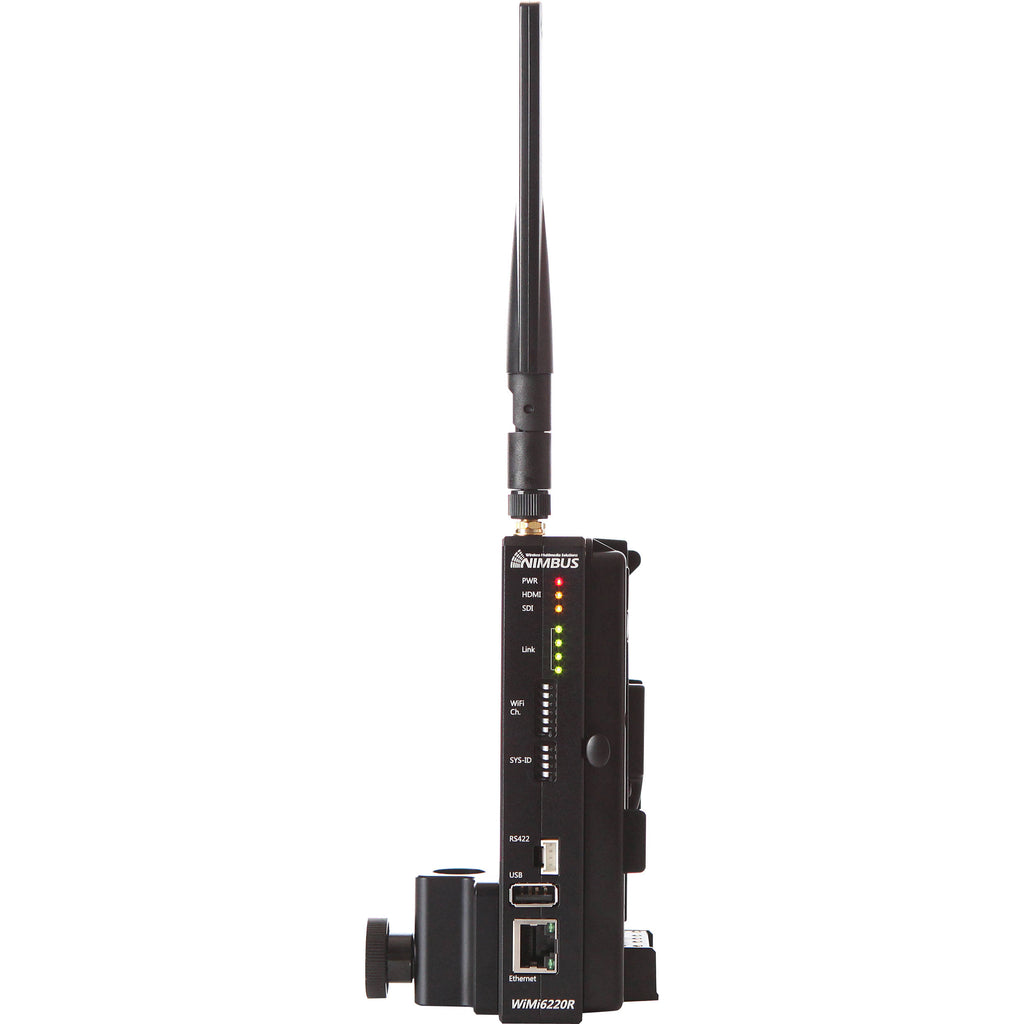

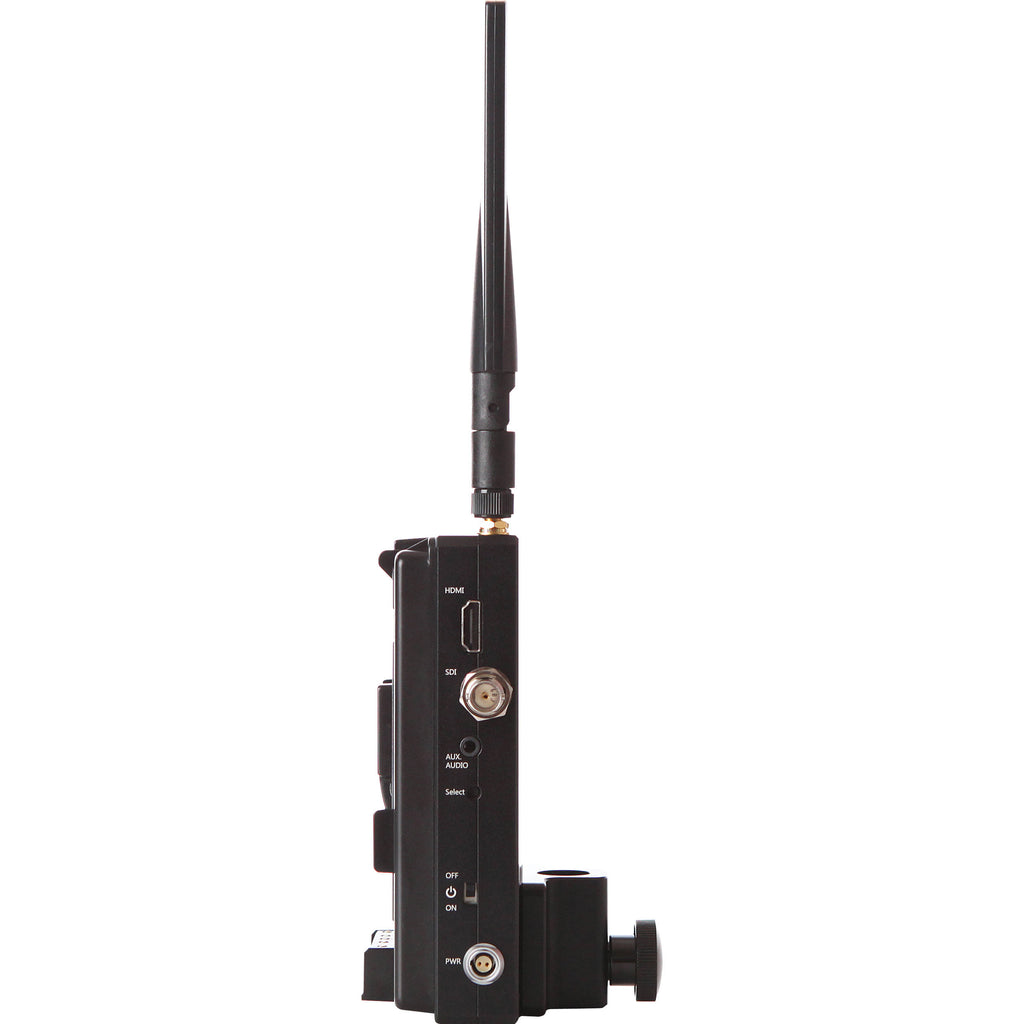

Alternatively, an Ethernet port, which allows for CCU/PTZ camera control, can also be used for wired connectivity and 1080p60 transmission, though only at maximum distances allowed by twisted pair cabling. In addition to the 3G/HD/SD-SDI output, HDMI output, and Ethernet port, the WiMi6220 receiver features an RS-422 interface and a two-way talk-back audio jack. With a corresponding audio jack available on the transmitter, the talk-back port allows connecting a headset mic for communication with talent.

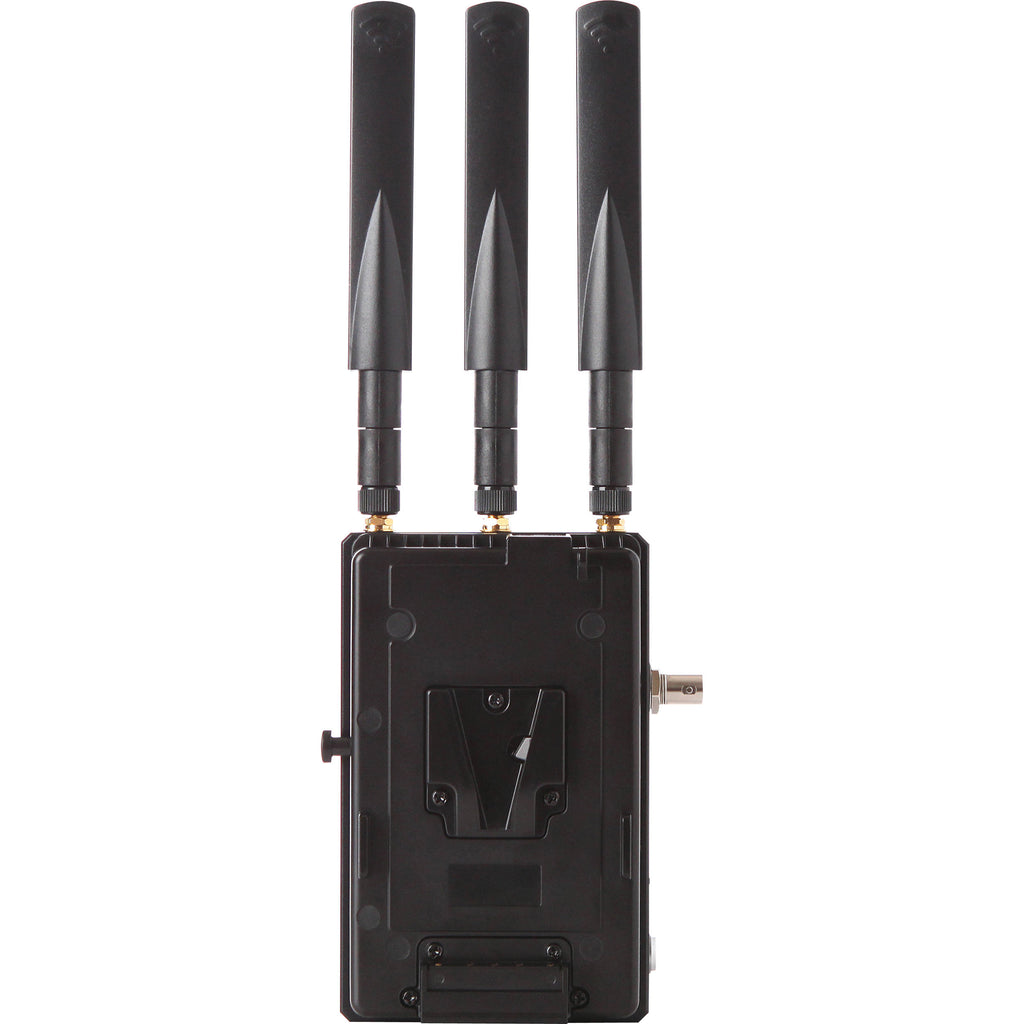

The WiMi6220 receiver offers a 1/4"-20 mounting thread on the bottom and comes with a V-mount battery plate and a power adapter. Batteries are sold separately.
Key Features
- 4921' range over 5 GHz Wi-Fi
- 80ms latency
- Up to 1080p60 SDI and HDMI resolutions
- Decodes H.264 file received from the transmitter and outputs it as video
- RTSP streaming server (RTP/UDP)
- MPEG2TS streaming (UDP)
- Relay streaming server (RTSP/MPEG2TS)
- Up to four units can be paired with a single transmitter, sold separately, for simultaneous multicasting
- 3G/HD/SD-SDI and HDMI outputs
- Ethernet port for CCU/PTZ control or wired connectivity and 1080p60 transmission
- Two-way talk-back audio jack for headset mic communication
- RS-422 interface
- Baseline profile with level 4.2
- V-mount battery plate and power adapter included
- USB firmware update port
- 1/4"-20 mounting thread
In the Box
- Nimbus WiMi6220 Wireless 3G-SDI & HDMI H.264 Decoder/Receiver
- 3 x 6 dBi Bar Antenna
- RJ45 Adapter for RS-422
- V-Mount Battery Plate
- Nimbus DCA12M Mini 12 VDC Adapter for WiMi6220, WiMi5150A, and WiMi5200
- Limited 1-Year Warranty
Nimbus WiMi6220 Specs
| Wireless Range | 4921.26' / 1500 m (Line-of-Sight) |
| # of Channels | 12 (40 MHz) 24 (20 MHz) |
| Frequency Range | 5.15 to 5.25 GHz 5.25 to 5.35 GHz 5.47 to 5.72 GHz 5.72 to 5.85 GHz |
| Latency | � 80 ms |
| Wi-Fi | 5 GHz Wi-Fi 5 (802.11ac) |
| Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Output 1 x HDMI Output |
| Audio Connectors | 1 x 1/8" / 3.5 mm TRS Stereo |
| Other I/O | 1 x RJ45 10/100 Ethernet 1 x RJ45 RS-422 1 x USB (Unspecified Type) |
| Embedded Audio | SDI HDMI |
| Video Format | SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080PsF at 23.98, 24, 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps HDMI: 1080p at 24, 30, 50, 59.94, 60 fps HDMI: 1080i/720p at 50, 59.94 fps HDMI: 576p/576i at 50 fps HDMI: 480p at 59.94, 60 fps HDMI: 480i at 59.94 fps |
| Audio Format | 16-Bit 48 kHz LPCM Audio |
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/425M ITU -R BT.601 |
| Battery Support | 1 x V-Mount |
| Power Connector | 1 x 2-Pin LEMO (6.8 to 16 VDC) Input |
| Power Consumption | Device: 10 W |
| Mounting | 1 x 1/4"-20 Female |
| Dimensions | 5.67 x 3.58 x 1.02" / 14.4 x 9.1 x 2.6 cm |
