Description
Nimbus WiMi5200 Overview
- 1Description
- 2Nimbus WiMi5200 Wireless 3G-SDI H.264 Encoder/Transmitter
- 3Nimbus WiMi5200 Wireless 3G-SDI H.264 Decoder/Receiver
- 4Nimbus WiMi1000 Wireless AP Repeater for WiMi5150A, WiMi5200, WiMi5200A & WiMi6220 Wireless Systems

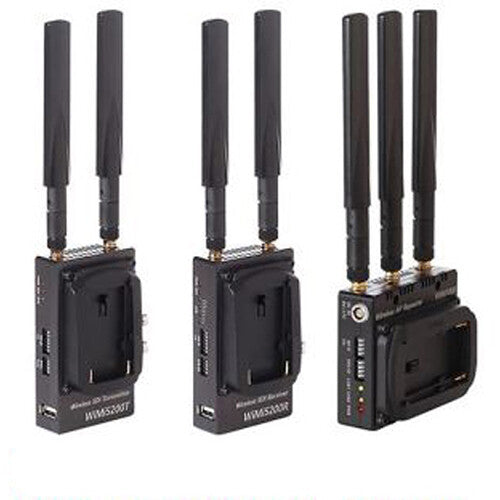

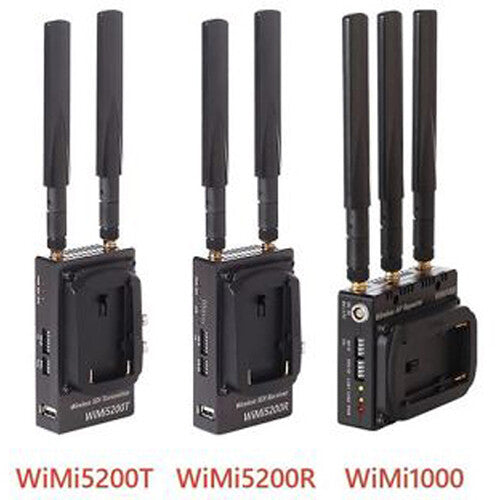

Wirelessly transmit high-quality HD video up to 1080p60 up to 1968' away using a 5 GHz Wi-Fi signal with this WiMi5200 Wireless Transmission System Bundle from Nimbus. The bundle includes one WiMi5200 3G-SDI H.264 encoder transmitter, one WiMi5200 decoder/receiver, and a WiMi1000 wireless AP repeater.
The transmitter can encode and send 3G/HD/SD-SDI video to the receiver simultaneously with virtually zero latency. The WiMi1000 repeater can extend the wireless signal by up to 1968', so the total distance covered is up to 6000'. Each unit features an L-series battery plate, a DCA12M DC power adapter, a 1/4"-20 mounting thread, and two adjustable RP-SMA antennas.
Nimbus WiMi5200 Wireless 3G-SDI H.264 Encoder/Transmitter
The WiMi5200 Wireless 3G-SDI H.264 Encoder/Transmitter from Nimbus pairs with an optional WiMi5200 receiver as a point-to-point Wi-Fi transmission system with a 1968' range and only 30ms latency. With both units featuring built-in 5 GHz Wi-Fi, no additional network connection is required. The transmitter encodes and sends up to a 1080p60 SDI signal as an H.264 encoded signal, and the receiver decodes and outputs it as video.
The WiMi5200 transmitter features a 3G/HD/SD-SDI input and 3G/HD/SD-SDI loop output. It offers a 1/4"-20 mounting thread on the bottom and comes with an L-series battery plate for on-camera portable operation. It also offers a 2-pin LEMO power connector for continuous power. Batteries and power adapters are sold separately.
Key Features
- 1968' range over 5 GHz Wi-Fi
- 30ms latency
- Encodes and sends up to a 1080p60 SDI signal in H.264 MPEG-4 Parts 10: AVC (decoded by optional receiver)
- 3G/HD/SD-SDI input and loop output
- Baseline profile with level 4.2
- DIP switch selection of Wi-Fi frequency and encoding rate
- USB firmware update port
- 1/4"-20 mounting thread
- L-series battery plate included
- 2-pin LEMO power input
Nimbus WiMi5200 Wireless 3G-SDI H.264 Decoder/Receiver
The WiMi5200 Wireless 3G-SDI H.264 Decoder/Receiver from Nimbus pairs with an optional WiMi5200 transmitter as a point-to-point Wi-Fi transmission system with a 1968' range and only 30ms latency. With both units featuring built-in 5 GHz Wi-Fi, no additional network connection is required. The receiver accepts up to a 1080p60 SDI signal encoded in H.264 by the transmitter, and it decodes and outputs it as video.
The WiMi5200 receiver features a single 3G/HD/SD-SDI output. It offers a 1/4"-20 mounting thread on the bottom and comes with an L-series battery plate as well as a power adapter. Batteries are sold separately.
Key Features
- 1968' range over 5 GHz Wi-Fi
- 30ms latency
- Up to 1080p60 SDI resolution
- Decodes H.264 file received from the transmitter and outputs it as video
- Single 3G/HD/SD-SDI output
- Baseline profile with level 4.2
- L-series battery plate and power adapter included
- 1/4"-20 mounting thread
Nimbus WiMi1000 Wireless AP Repeater for WiMi5150A, WiMi5200, WiMi5200A & WiMi6220 Wireless Systems
Compatible with select Nimbus wireless transmission systems, the Nimbus WiMi1000 Wireless AP Repeater allows you to extend the wireless distance between the transmitter and receiver by 4000' with 1 ms latency. It lets you do this even when something is blocking the line of sight, as long as both units have a line-of-sight view of the repeater.
A common application is using the repeater to go around corners. For example, if you place the repeater on a corner of a building, and both your transmitter and receiver are on different sides of that building, as long as each one has a line of sight of the repeater, the repeater will connect them and increase transmission distance by 4000'. A 5000' system, for example, can be extended to 9000'. It works the same way in fields, tunnels, and various other settings.
The repeater comes with an L-series battery plate as well as a power supply. Simply mount it on the corner or other location via its 1/4"-20 mounting thread, power it on, and set its DIP switches to match the DIP switch settings of the transmitter/receiver set. The repeater is compatible with the Nimbus WiMi5150A, WiMi5200, WiMi5200A, and WiMi6220 wireless transmission systems.
Key Features
- Extends the wireless distance between the transmitter and receiver by 4000'
- 1 ms latency
- Enables going around corners when line of sight is broken
- DIP switch setup
- L-series battery plate and power supply included
In the Box
- Nimbus WiMi5200 Wireless 3G-SDI H.264 Encoder/Transmitter

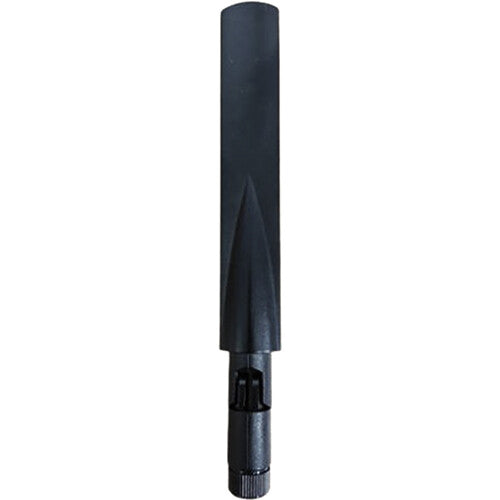

- 2 x 6 dBi Bar Antenna
- Sony L-Series Battery Plate
- Limited 1-Year Warranty
- Nimbus WiMi5200 Wireless 3G-SDI H.264 Decoder/Receiver
- 2 x 6 dBi Bar Antenna
- Sony L-Series Battery Plate

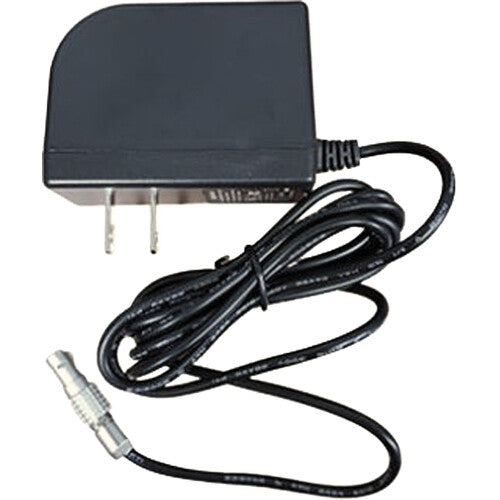

- Nimbus DCA12M Mini 12 VDC Adapter for WiMi6220, WiMi5150A, and WiMi5200
- Limited 1-Year Warranty
- Nimbus WiMi1000 Wireless AP Repeater for WiMi5150A, WiMi5200, WiMi5200A & WiMi6220 Wireless Systems
- 3 x 6 dBi Bar Antenna
- L-Series Battery Plate
- Nimbus DCA12M Mini 12 VDC Adapter for WiMi6220, WiMi5150A, and WiMi5200
- Limited 1-Year Warranty
- Description
- Nimbus WiMi5200 Wireless 3G-SDI H.264 Encoder/Transmitter
- Nimbus WiMi5200 Wireless 3G-SDI H.264 Decoder/Receiver
- Nimbus WiMi1000 Wireless AP Repeater for WiMi5150A, WiMi5200, WiMi5200A & WiMi6220 Wireless Systems
Nimbus WiMi5200 Wireless 3G-SDI H.264 Encoder/Transmitter Specs
| Wireless Range | 1968.5' / 600 m (Line-of-Sight) |
| # of Channels | 12 (40 MHz) |
| Latency | ? 30 ms |
| Wi-Fi | 5 GHz Wi-Fi 4 (802.11n) |
| Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output |
| Embedded Audio | SDI |
| Video Format |
SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080PsF at 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps |
| Video Standard Compliance | SMPTE 274M/296M |
| Battery Support | 1 x Sony L-Series / NP-F Type |
| Power Connector | 1 x 2-Pin LEMO Input |
| Mounting | 1 x 1/4"-20 Female |
| Dimensions | 4.65 x 2.68 x 0.98" / 11.8 x 6.8 x 2.5 cm |
| Weight | 0.57 lb / 260 g |
Nimbus WiMi5200 Wireless 3G-SDI H.264 Decoder/Receiver Specs
| Wireless Range | 1968.5' / 600 m (Line-of-Sight) |
| # of Channels | 12 (40 MHz) |
| Latency | ? 30 ms |
| Wi-Fi | 5 GHz Wi-Fi 4 (802.11n) |
| Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Output |
| Embedded Audio | SDI |
| Video Format |
SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080PsF at 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps |
| Video Standard Compliance | SMPTE 274M/296M |
| Battery Support | 1 x Sony L-Series / NP-F Type |
| Power Connector | 1 x 2-Pin LEMO Input |
| Mounting | 1 x 1/4"-20 Female |
| Dimensions | 4.65 x 2.68 x 0.98" / 11.8 x 6.8 x 2.5 cm |
| Weight | 0.57 lb / 260 g |
Nimbus WiMi1000 Wireless AP Repeater for WiMi5150A, WiMi5200, WiMi5200A & WiMi6220 Wireless Systems Specs
| Power Input | 2-Pin LEMO |
| Latency | 1 ms |
| Mount Type | 1/4"-20 Female |
| Package Weight | 1.89 lb |
| Box Dimensions (LxWxH) | 14 x 9 x 3.3" |
Nimbus WiMi5200 Reviews
