Description
Nimbus WiMi5200 Overview

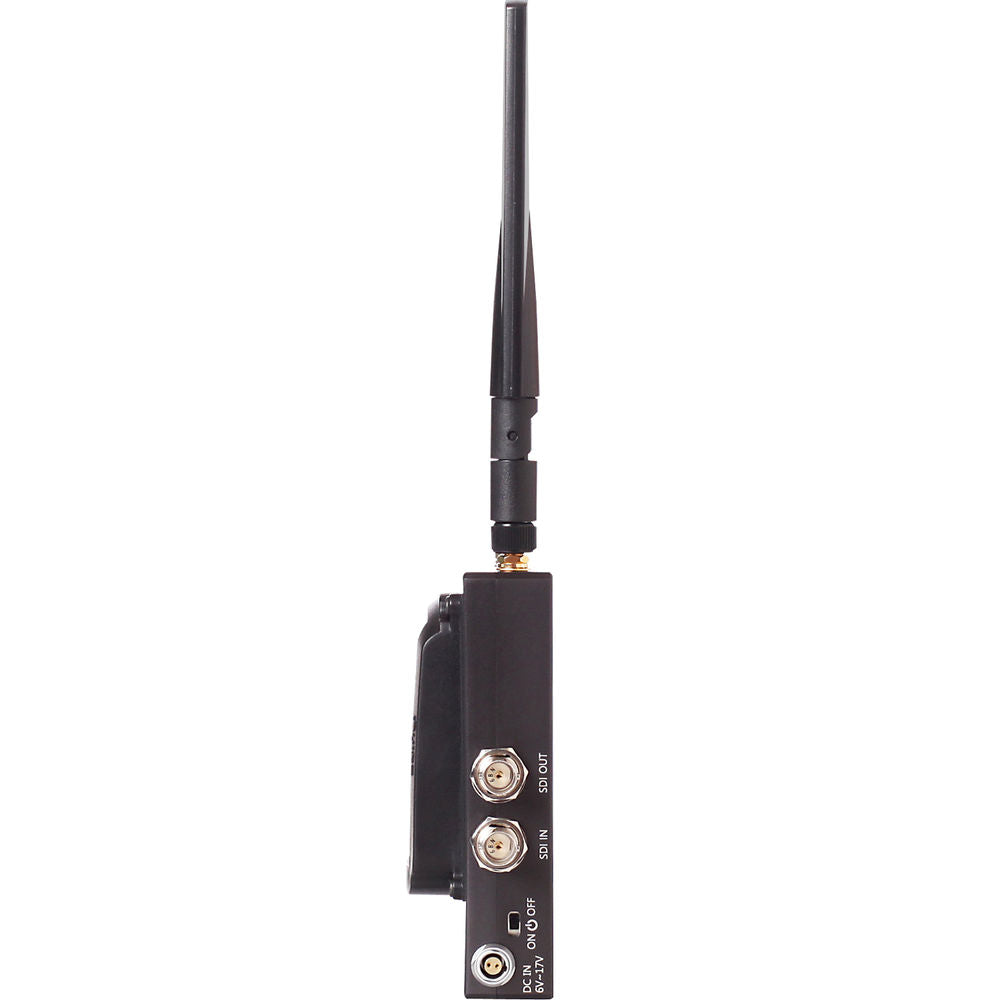

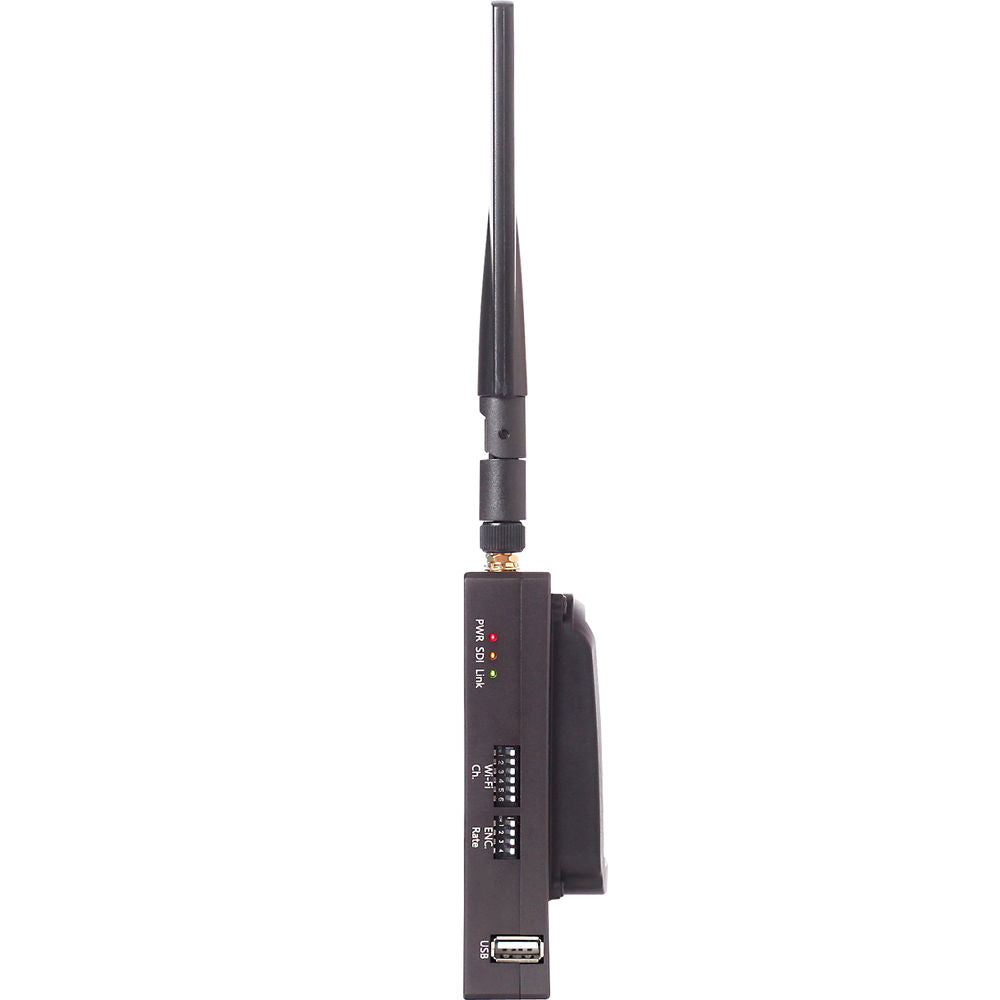

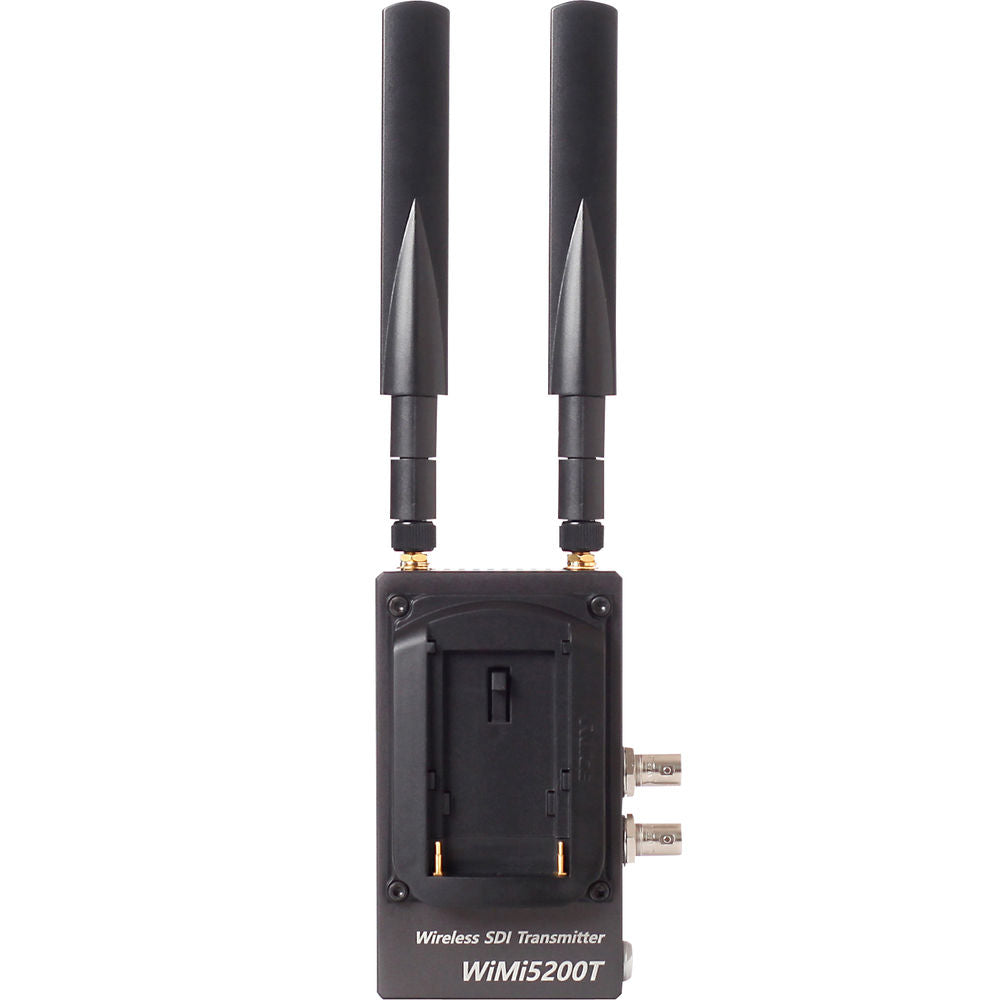

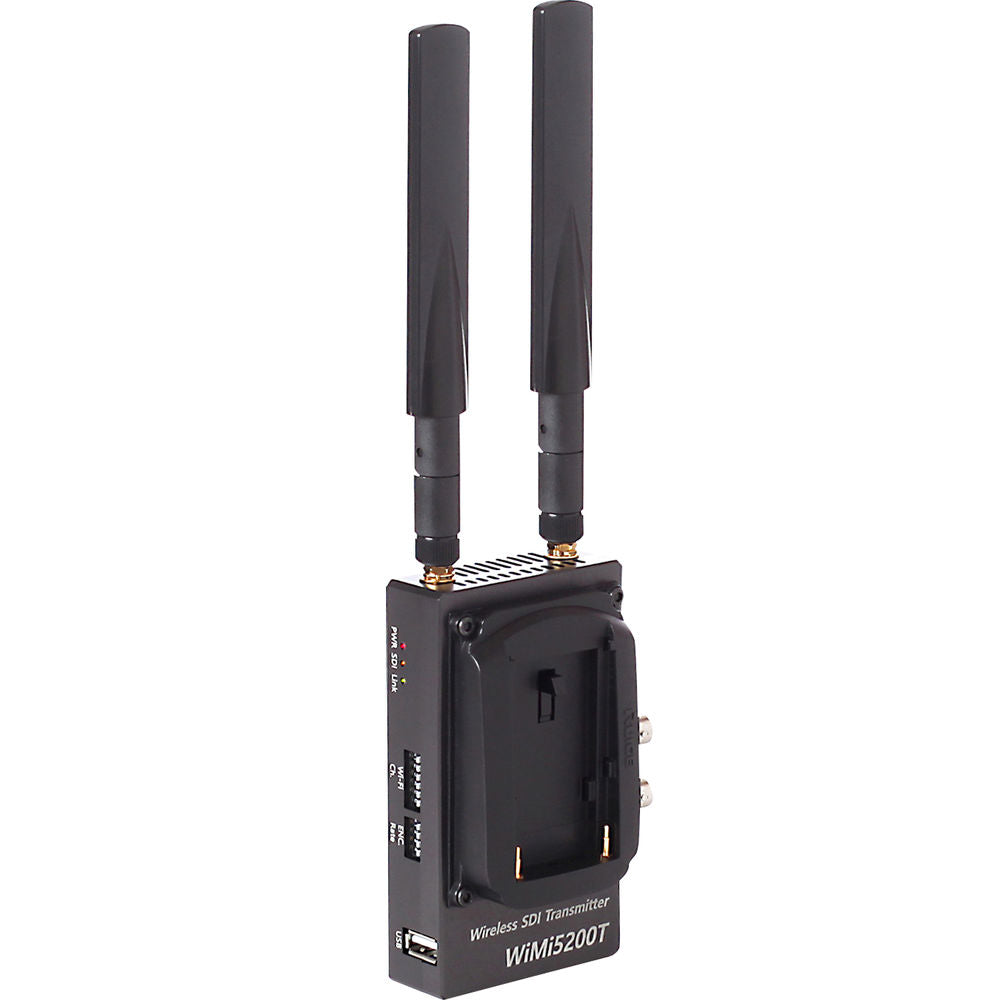

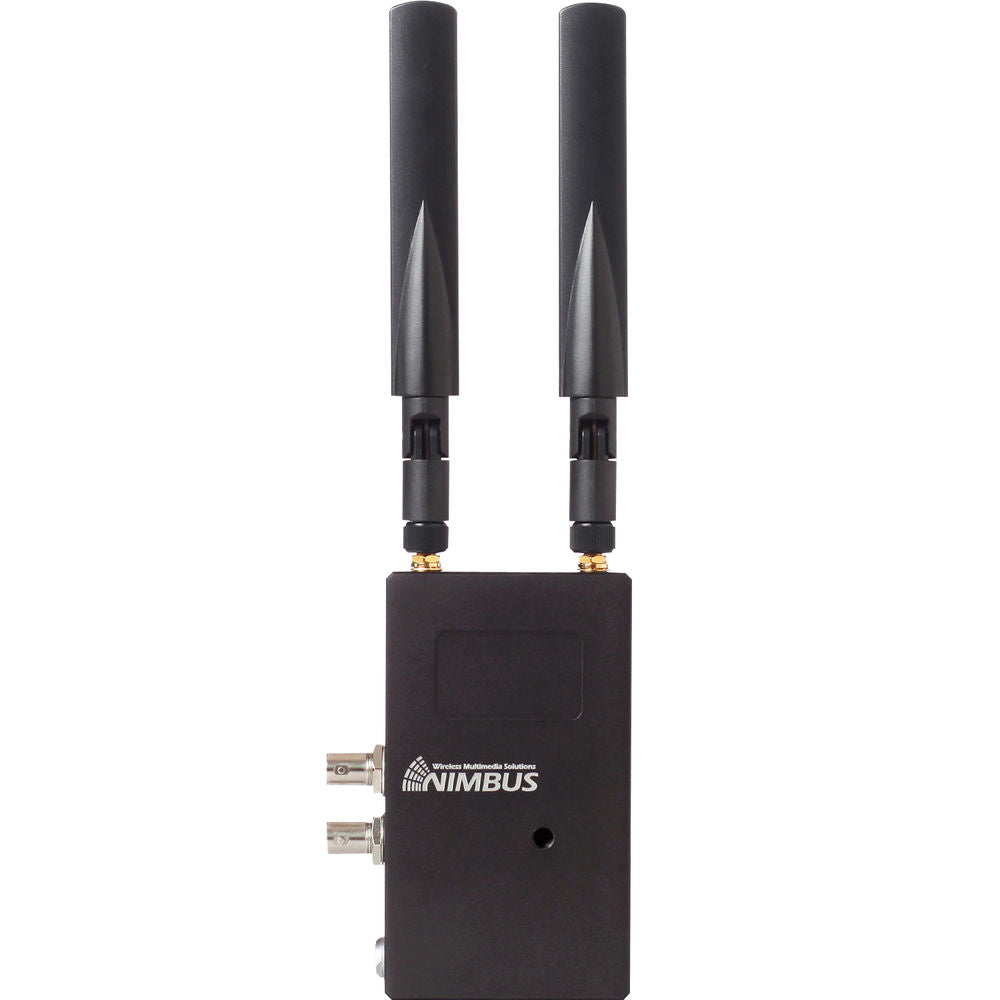

The WiMi5200 Wireless 3G-SDI H.264 Encoder/Transmitter from Nimbus pairs with an optional WiMi5200 receiver as a point-to-point Wi-Fi transmission system with a 1968' range and only 30ms latency. With both units featuring built-in 5 GHz Wi-Fi, no additional network connection is required. The transmitter encodes and sends up to a 1080p60 SDI signal as an H.264 encoded signal, and the receiver decodes and outputs it as video.
The WiMi5200 transmitter features a 3G/HD/SD-SDI input and 3G/HD/SD-SDI loop output. It offers a 1/4"-20 mounting thread on the bottom and comes with an L-series battery plate for on-camera portable operation. It also offers a 2-pin LEMO power connector for continuous power. Batteries and power adapters are sold separately.
Key Features
- 1968' range over 5 GHz Wi-Fi
- 30ms latency
- Encodes and sends up to a 1080p60 SDI signal in H.264 MPEG-4 Parts 10: AVC (decoded by optional receiver)
- 3G/HD/SD-SDI input and loop output
- Baseline profile with level 4.2
- DIP switch selection of Wi-Fi frequency and encoding rate
- USB firmware update port
- 1/4"-20 mounting thread
- L-series battery plate included
- 2-pin LEMO power input
In the Box
- Nimbus WiMi5200 Wireless 3G-SDI H.264 Encoder/Transmitter
- 2 x 6 dBi Bar Antenna
- Sony L-Series Battery Plate
- Limited 1-Year Warranty
Nimbus WiMi5200 Specs
| Wireless Range | 1968.5' / 600 m (Line-of-Sight) |
| # of Channels | 12 (40 MHz) |
| Latency | � 30 ms |
| Wi-Fi | 5 GHz Wi-Fi 4 (802.11n) |
| Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output |
| Embedded Audio | SDI |
| Video Format |
SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080PsF at 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps |
| Video Standard Compliance | SMPTE 274M/296M |
| Battery Support | 1 x Sony L-Series / NP-F Type |
| Power Connector | 1 x 2-Pin LEMO Input |
| Mounting | 1 x 1/4"-20 Female |
| Dimensions | 4.65 x 2.68 x 0.98" / 11.8 x 6.8 x 2.5 cm |
| Weight | 0.57 lb / 260 g |
