- F Mount Lens/FX Format
- Aperture Range: f/2.8 to f/22
- ASP/ED, AS, ED, and HRI Elements
- Nano Crystal & Super Integrated Coating
- Fluorine Coated Front and Rear Elements
- Silent Wave Motor AF System
- Vibration Reduction Image Stabilization
- Internal Focus, Manual Focus Override
- Electromagnetic Diaphragm Mechanism
- Rounded 9-Blade Diaphragm

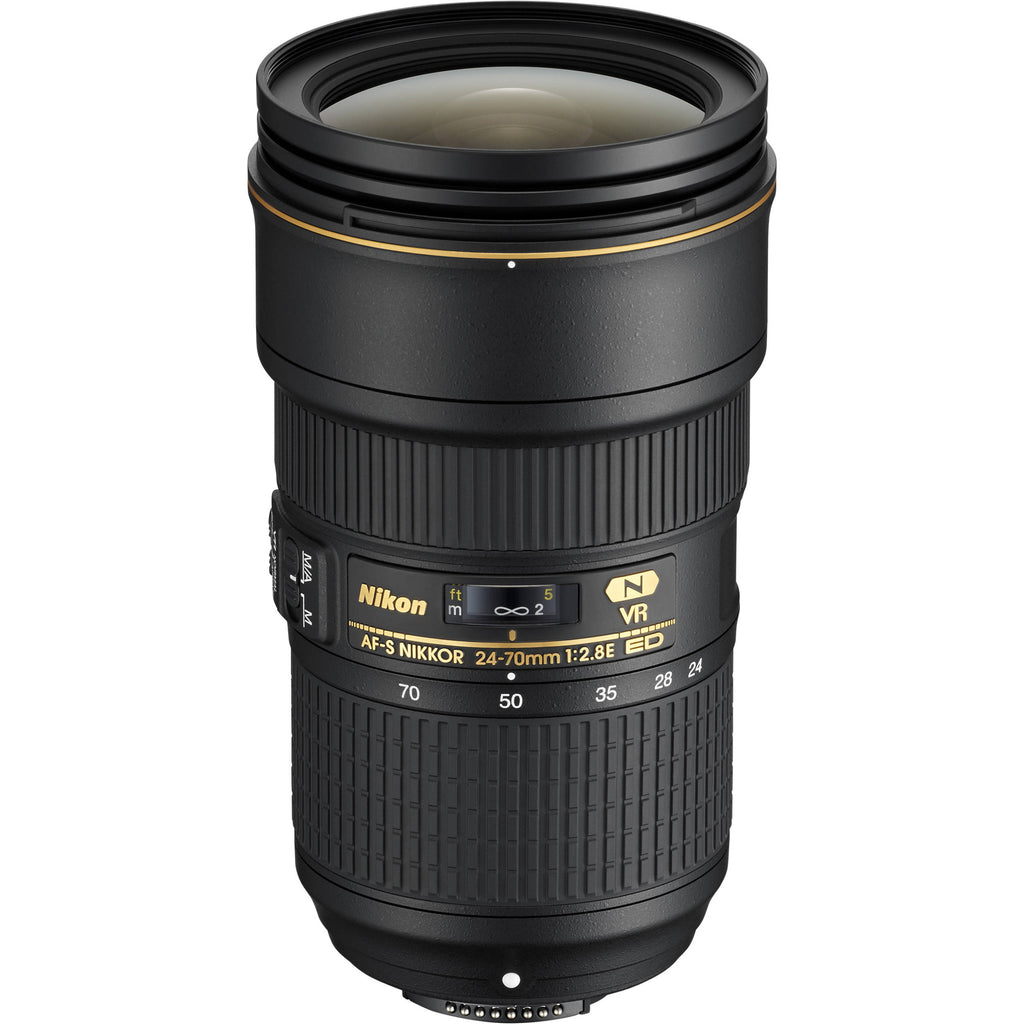

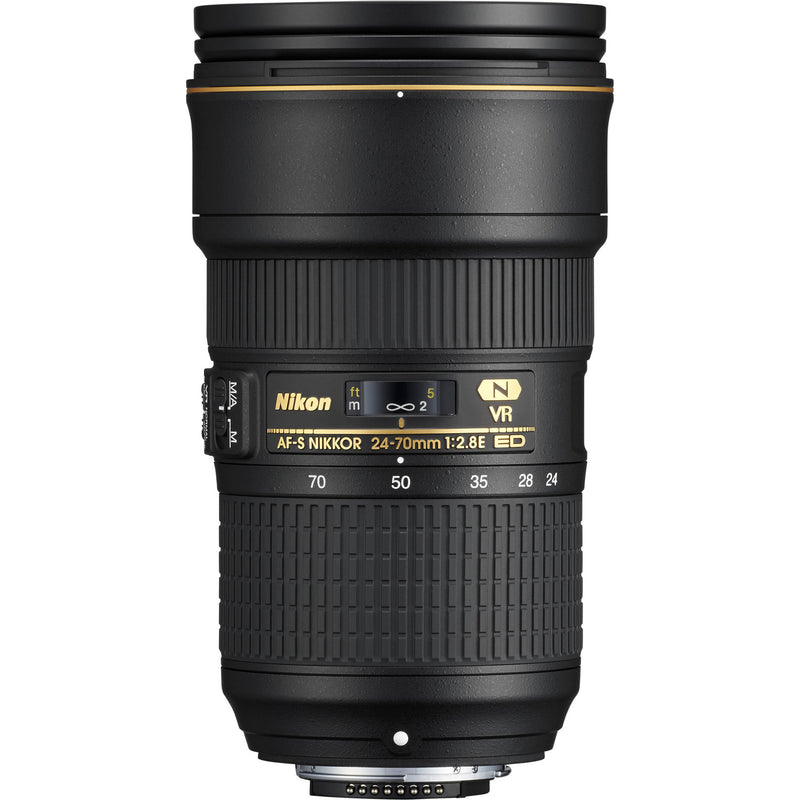

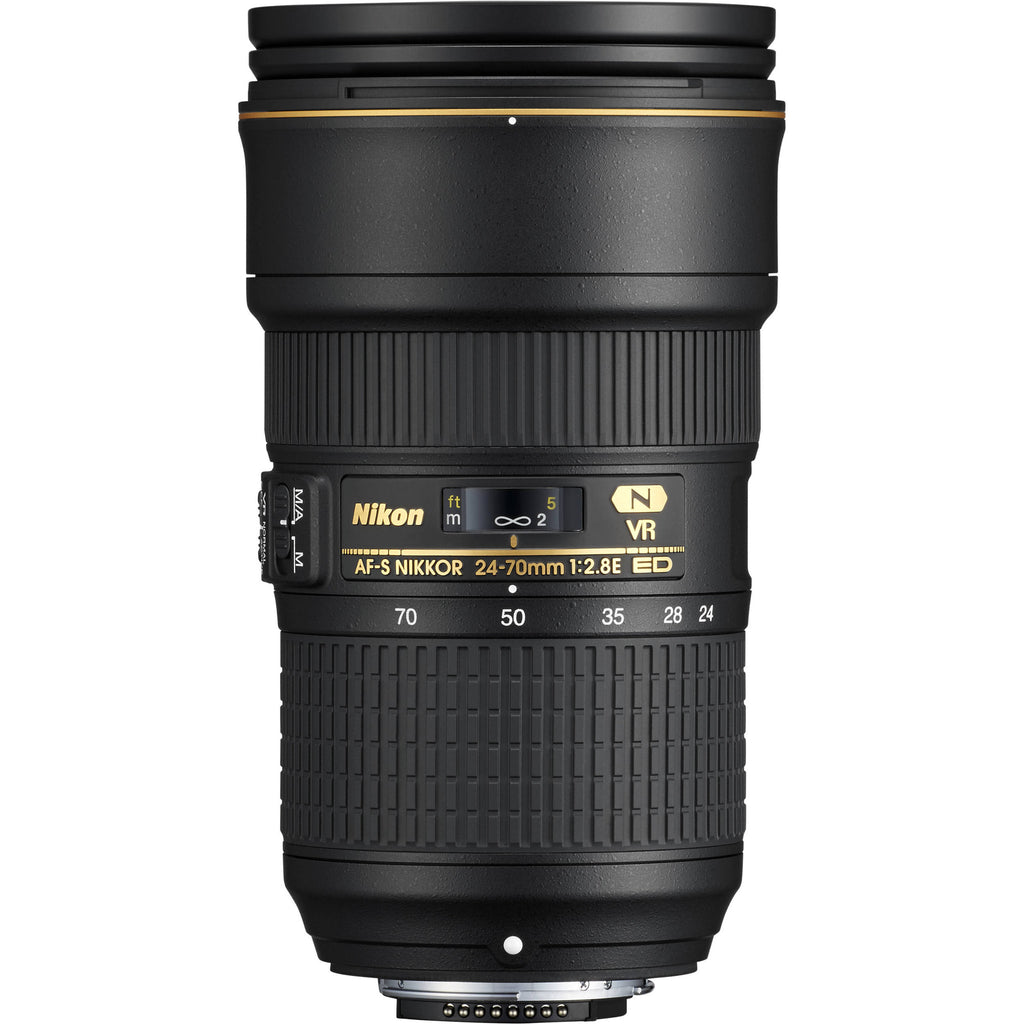

The classic standard zoom now featuring Vibration Reduction image stabilization, Nikon's AF-S NIKKOR 24-70mm f/2.8E ED VR Lens is a truly versatile wide-angle to short telephoto lens characterized by its constant f/2.8 maximum aperture and electromagnetic aperture mechanism. A revised optical design incorporates a unique aspherical extra-low dispersion element, in addition to three aspherical, two extra-low dispersion, and one high refractive index elements, to help reduce chromatic aberrations and distortions throughout the zoom range in order to achieve high image sharpness and clarity. The Nano Crystal and Super Integrated Coatings further benefit image quality by reducing lens flare for improved contrast and color accuracy and fluorine coatings on the front and rear elements protect against dust, moisture, and smudging.
Complementing the imaging capabilities, a Silent Wave Motor AF system produces quick, quiet focusing performance that suits both stills shooting and movie recording which can instantly be manually overridden by simply turning the manual focus ring. Further contributing to photographing in fast-paced situations and difficult lighting, VR (Vibration Reduction) image stabilization compensates for the effects of camera shake by up to four shutter speed stops. Additionally, an electromagnetic aperture mechanism is integrated into the lens design to provide greater exposure control stability that is especially beneficial when working with faster continuous shooting rates.
- Designed for use with FX image sensors, this lens is also compatible with DX sensors where it will provide a 36-105mm equivalent focal length range.
- Standard zoom lens covers wide-angle to short telephoto focal lengths to suit working in a wide variety of situations.
- Constant f/2.8 maximum aperture offers consistent performance throughout the zoom range and also benefits working in difficult lighting conditions and using selective focus techniques.
- A unique aspherical extra-low dispersion element is incorporated into the optical design, along with three aspherical, one high refractive index, and two extra-low dispersion glass elements, to reduce chromatic and spherical aberrations, distortion, coma (comatic aberration), and flare for consistent edge-to-edge sharpness and illumination.
- Vibration Reduction image stabilization helps to reduce the appearance of camera shake by up to four shutter speed stops to better enable handheld shooting in low-light situations.
- Silent Wave Motor autofocus mechanism provides quick, quiet, and precise autofocus performance that is ideal for photographing fast-moving subjects.
- Full-time manual focus override allows instant switching between AF and MF focusing systems by just rotating the focus ring at any time.
- Internal focusing design maintains the overall lens length during operation and contributes to a lighter overall weight.
- Specialized electromagnetic aperture mechanism provides greater exposure control stability that is especially beneficial when working with fast continuous shooting rates.
This mechanism limits the compatibility of this lens to the following cameras: D4 series, D3 series, Df, D810, D810A, D800 series, D750, D700, D610, D600, D300 series, D7200, D7100, D7000, D5500, D5300, D5200, D5100, D5000, D3300, D3200, D3100, Nikon 1 J1, J2, J3, J4 with FT-1, Nikon 1 V1, V2, V3 with FT-1, and Nikon 1 S1, S2 with FT-1.
- Nano Crystal and Super Integrated Coatings have been applied to lens elements to minimize surface and internal reflections for a marked reduction in lens flare and ghosting.
- Fluorine coatings on the front and rear elements afford protection to the optical system.
UPC: 018208200528
| Performance |
| Focal Length | 24 - 70mm |
| Aperture | Maximum: f/2.8
Minimum: f/22 |
| Camera Mount Type | Nikon F |
| Format Compatibility | Nikon FX/35mm Film |
| Angle of View | 84° - 34° 20' |
| Minimum Focus Distance | 1.25' (38 cm) |
| Magnification | 0.28x |
| Elements/Groups | 20/16 |
| Diaphragm Blades | 9, Rounded |
| Features |
| Image Stabilization | Yes |
| Autofocus | Yes |
| Physical |
| Filter Thread | Front: 82 mm x 0.75 mm Pitch |
| Dimensions (DxL) | Approx. 3.46 x 6.08" (88 x 154.5 mm) |
| Weight | 2.35 lb (1070 g) |
| Packaging Info |
| Package Weight | 3.75 lb |
| Box Dimensions (LxWxH) | 9.449 x 5.827 x 5.669" |
In the Box
Nikon AF-S NIKKOR 24-70mm f/2.8E ED VR Lens
