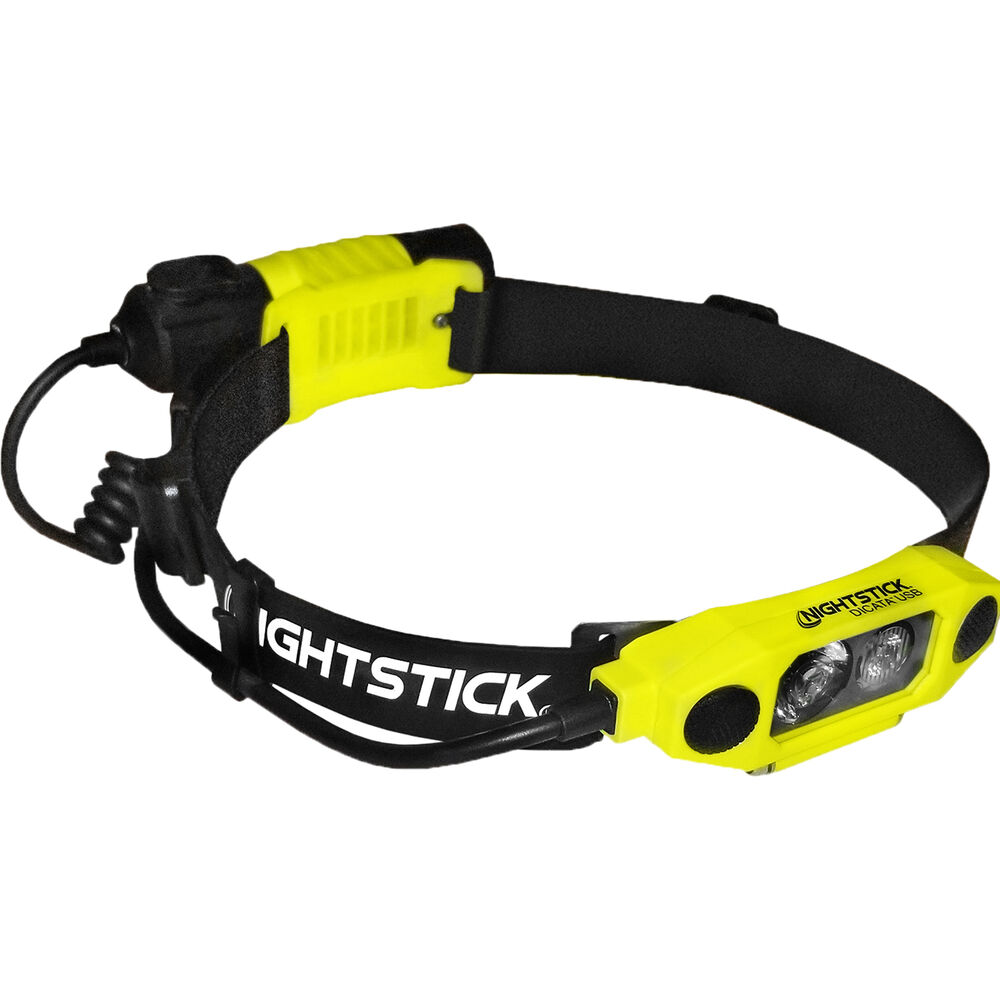

Nightstick XPR-5562GX Dicata Intrinsically Safe Low-Profile Dual-Light Rechargeable Headlamp

300-Lumen Peak Output

For Helmets/Hard Hats with Face Shields

Spot, Flood & Dual Beam Settings

Magnetic Charge Cable

Built for use with firefighters' helmets and hard hats with face shields, the XPR-5562GX Dicata Intrinsically Safe Low-Profile Dual-Light Rechargeable Headlamp from Nightstick is rated safe for use in hazardous work environments. The Dicata features spot, flood, and dual beams with a maximum output of 300 lumens. The Total Internal Reflection (TIR) lens maximizes light output and beam shape, and the lamp tilts to shine the light where it is needed. Power is supplied by an Li-ion battery with Nightstick's convenient MagMate USB charging cable; runtime is six hours for the spot and flood beams and five hours for both beams together. Large push buttons on the front of the lamp make it easy to operate. Rated IP67 waterproof, this headlamp is designed to withstand wet conditions, and its rubber strap will grip a helmet or hard hat tightly so the lamp stays put.

Light Performance

• Spot beam 100/275 lumens, flood beam 100/250 lumens, dual beam 300 lumens
• Runtime: 6/15 hours spot and flood, 5 hours dual
• Total Internal Reflection (TIR) lens

Switching

• Spot and flood push-button switches

Construction Details

• Engineered polymer housing
• Low-profile lamp is compatible with helmet and hard-hat face shields
• Tilting head for optimal beam placement
• Rear-mounted battery pack

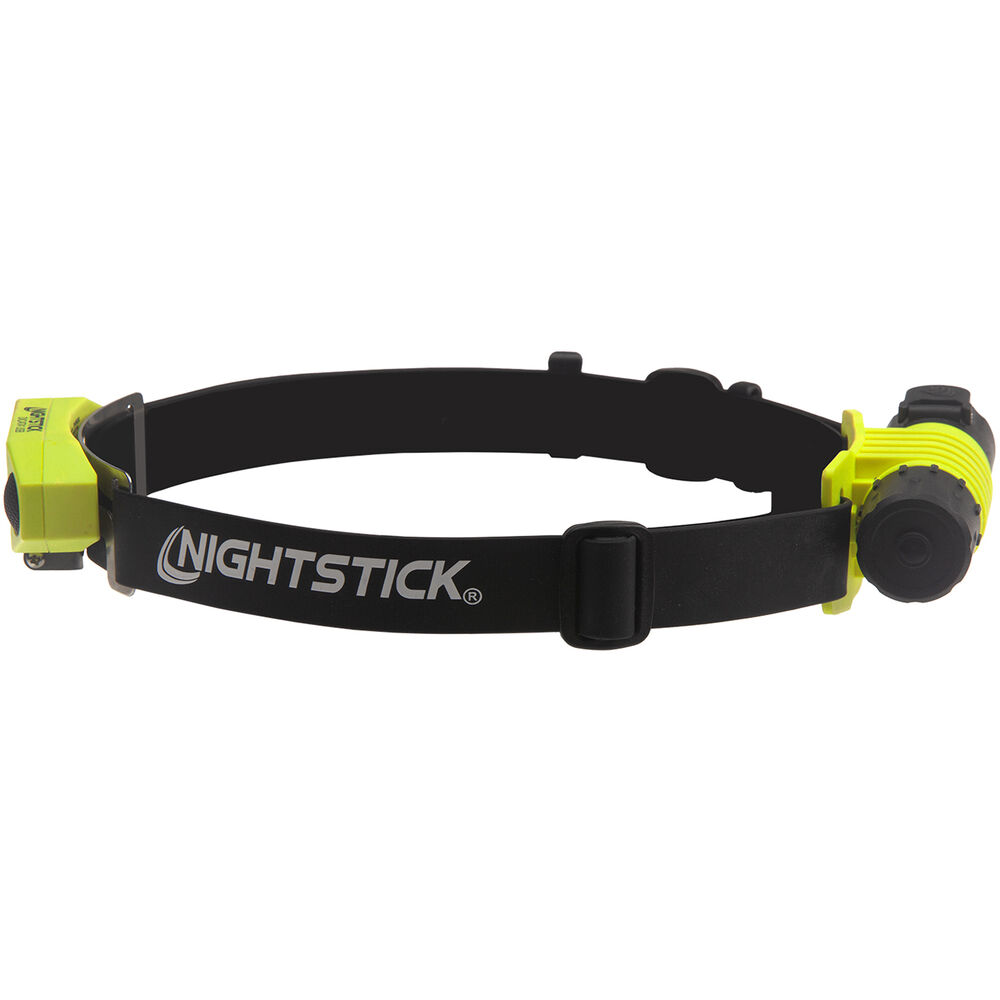

• Rubber hard-hat strap
• IP67-rated waterproof and dust-proof

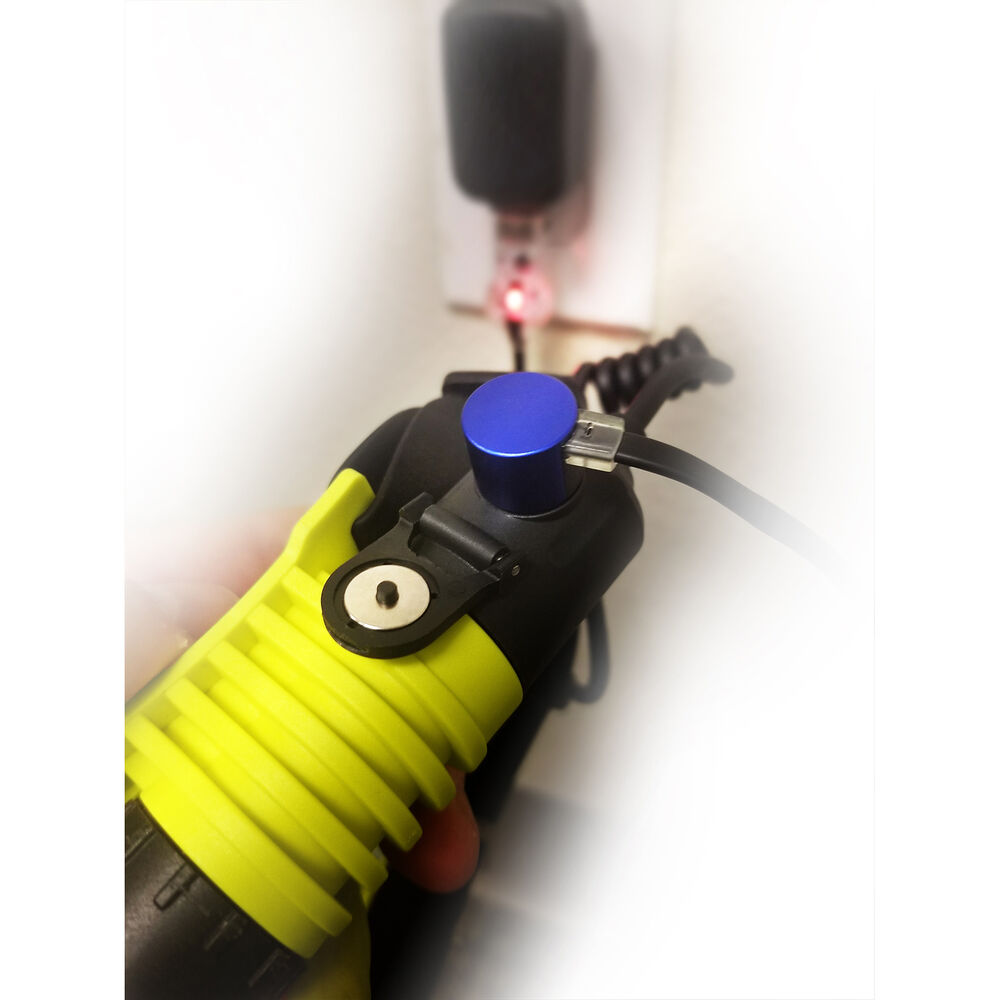

• Li-ion battery pack with MagMate magnetic charging cable

Safety Certifications

• cULus, ATEX, and IECEx certified intrinsically safe
• CLASS I DIV 1: GRPS A-D T4
• CLASS II & III DIV 1: GRPS E-G T135°
• CLASS I ZONE 0: AEx ia op is IIC T4 Ga
• ATEX Certification: II 1 G Ex ia op is IIC T4 Ga
• IECEx Certification: Ex ia op is IIC T4 Ga

UPC: 017398807746

Lumen Output	Proprietary Lithium-Ion : High (Spot): 275 Lumens Low (Spot): 100 Lumens High (Flood): 250 Lumens Low (Flood): 100 Lumens All Beams: 300 Lumens
Illumination Source	2 x LED
Estimated Runtime	High (Spot): 6 Hours Low (Spot): 15 Hours High (Flood): 6 Hours Low (Flood): 15 Hours All Beams: 5 Hours
Battery Type	1 x Rechargeable Pack

Material of Construction	Plastic
Water Resistance	Waterproof, IP67
Impact Resistance	Yes, 6.6' / 2.0 m
Dimensions	W: 3.8 x H: 1.3 x D: 1.0" / W: 9.7 x H: 3.3 x D: 2.5 cm
Weight	7.5 oz / 213 g

Package Weight	0.8 lb
Box Dimensions (LxWxH)	5.3 x 5.2 x 2.5"
