Description

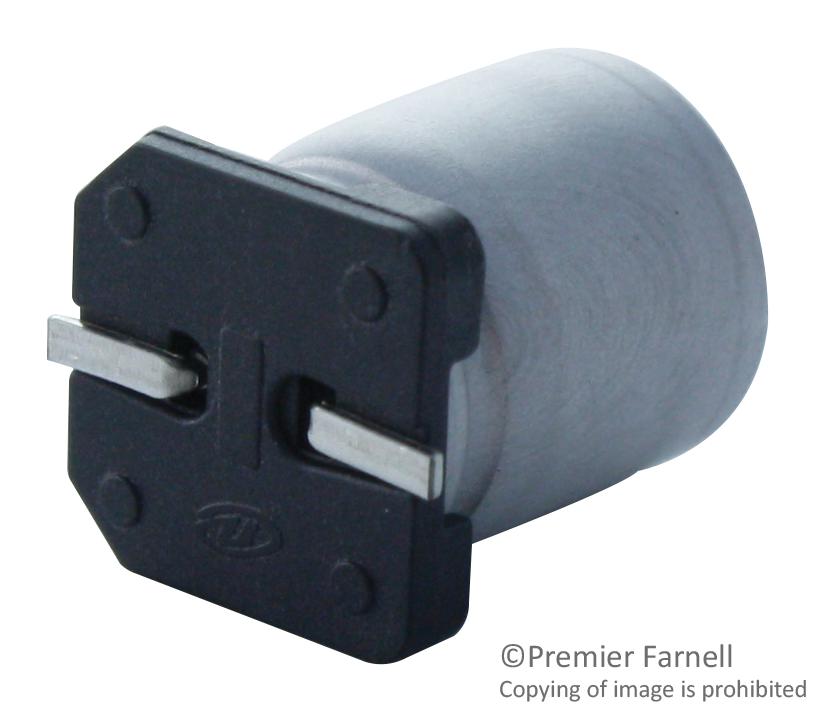

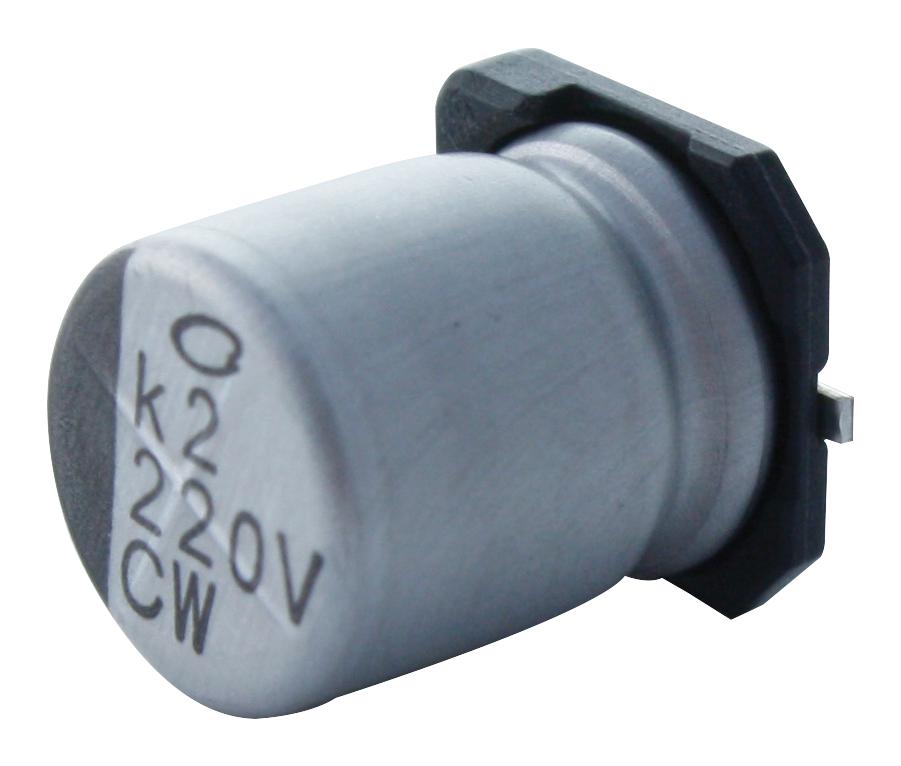

The UCW1V221MNL1GS is a SMD aluminium Electrolytic Capacitor features black print on the case top marking and long life assurance. Chip type with load life of 7000hours at +105°C. Low impedance temperature range up to +105°C. Applicable to automatic mounting machine fed with carrier tape.
- Anti-solvent
- 0.22R at 20°C/100kHz Maximum impedance
Applications
Industrial
Product details
| Capacitor Case / Package: Radial Can - SMD |
| Capacitance: 220µF |
| Voltage(DC): 35V |
| ESR: - |
| Lifetime @ Temperature: 7000 hours @ 105°C |
| Polarity: Polar |
| Product Range: CW |
| Capacitance Tolerance: ± 20% |
| Capacitor Terminals: Solder |
| Product Diameter: 8mm |
| Product Length: - |
| Product Width: - |
| Product Height: 10mm |
| Ripple Current: 600mA |
| Operating Temperature Min: -25°C |
| Operating Temperature Max: 105°C |
| Qualification: AEC-Q200 |
| MSL: - |
Other details
| Brand | NICHICON |
| Part Number | UCW1V221MNL1GS |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
