Description

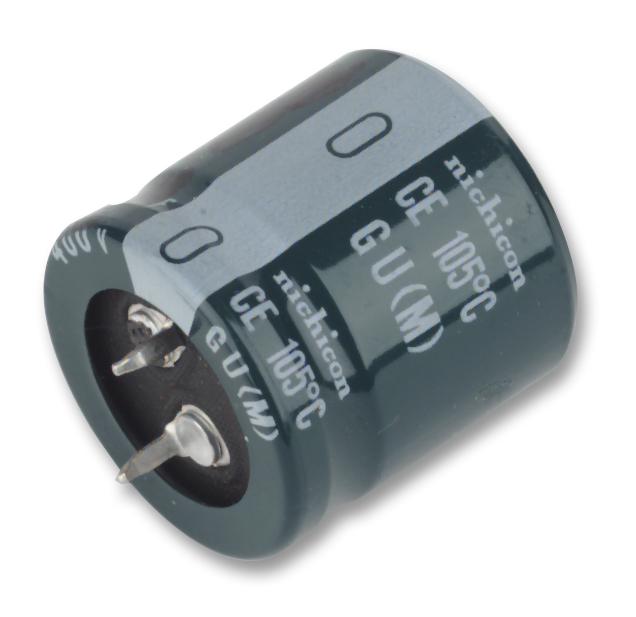

The GU series snap-in terminal Aluminium Electrolytic Capacitor features high ripple current, smaller size, low profile and withstands 3000 hours application of rated ripple current at 105°C.
- -40 to 105°C Temperature range
- 16 to 450V Rated voltage range
- 47 to 47000µF Rated capacitance range
- Anti-Solvent (through 100V only)
Applications
Industrial
Product details
| Capacitance: 220µF |
| Voltage(DC): 400V |
| Voltage(AC): - |
| Capacitance Tolerance: ± 20% |
| Capacitor Terminals: Snap-In |
| Lifetime @ Temperature: 3000 hours @ 105°C |
| Polarity: Polar |
| Product Range: GU |
| Product Diameter: 25mm |
| Product Height: 40mm |
| Lead Spacing: 10mm |
| ESR: - |
| Ripple Current: 1.1A |
| Operating Temperature Min: -25°C |
| Operating Temperature Max: 105°C |
| Qualification: - |
Other details
| Brand | NICHICON |
| Part Number | LGU2G221MELA |
| Quantity | Each |
| Technical Data Sheet EN |  |
