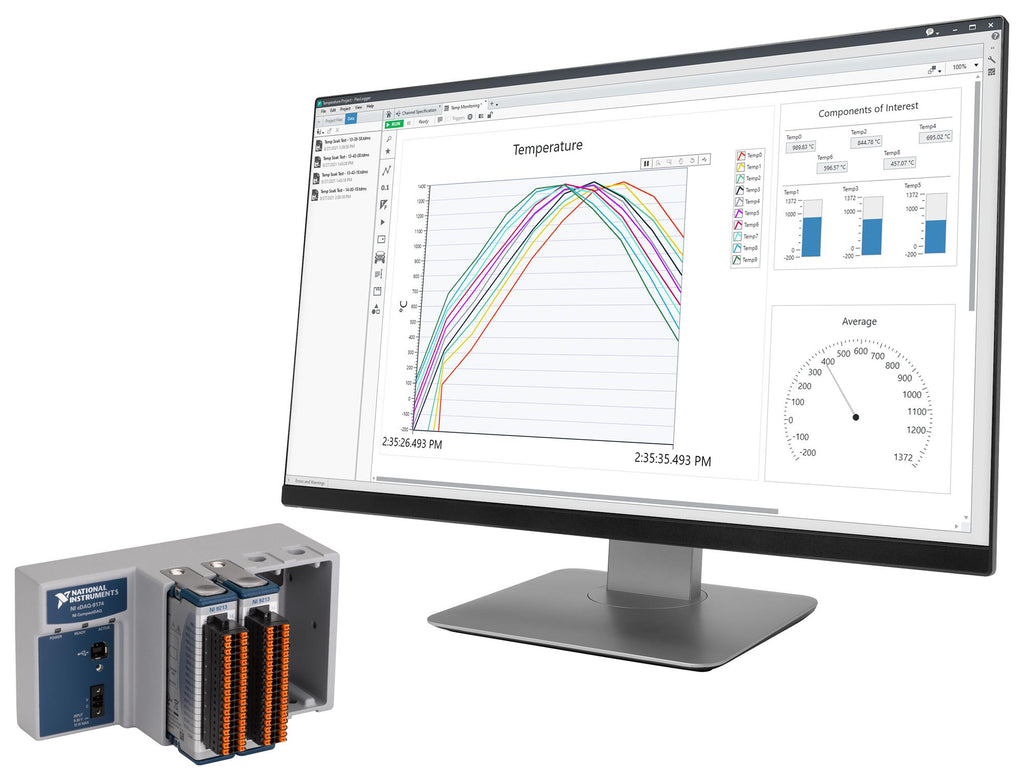

Spend less time configuring your test system and more time testing your products with NI's temperature measurement bundle designed for your sensor needs. The NI CompactDAQ temperature measurement bundle simplifies connecting thermocouples to a PC. Reduce setup time with direct bare-wire sensor connections and have expandability with 32 channels for applications that need several test points in a small space. The hardware bundle has built-in cold junction compensation (CJC) for improved accuracy and are great for thermal chamber soaking tests, validating heat transfer simulations, monitoring power dissipation on electronic designs, and more. Test anywhere, from on benchtop to on site, with rugged hardware you can pack in a small case. Program CompactDAQ with Python, C/C#, .NET, and LabVIEW or purchase NI's FlexLogger data acquisition software to configure your thermocouple type, add real-time charts, and save data to a file in minutes.
- Save time with each new setup by reusing the same software
Product details
| Kit Contents |

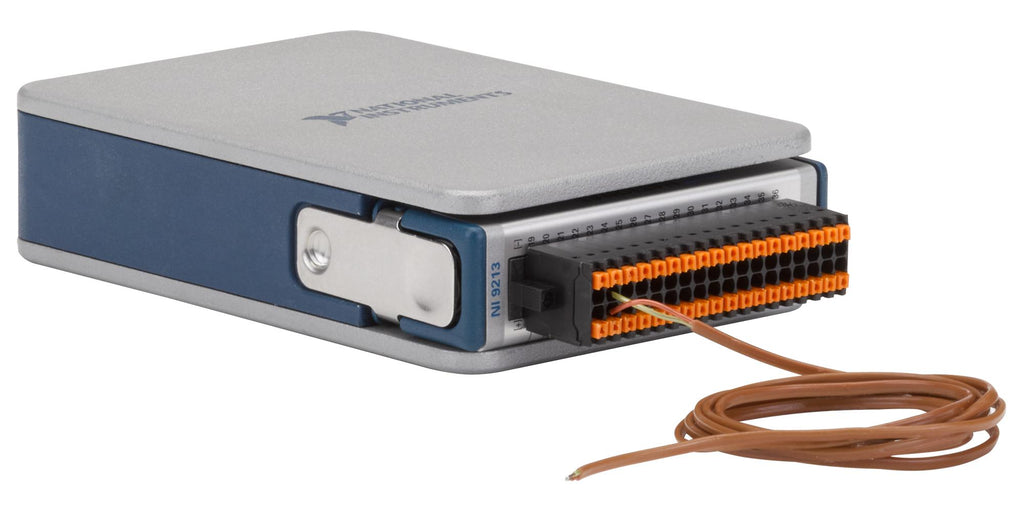

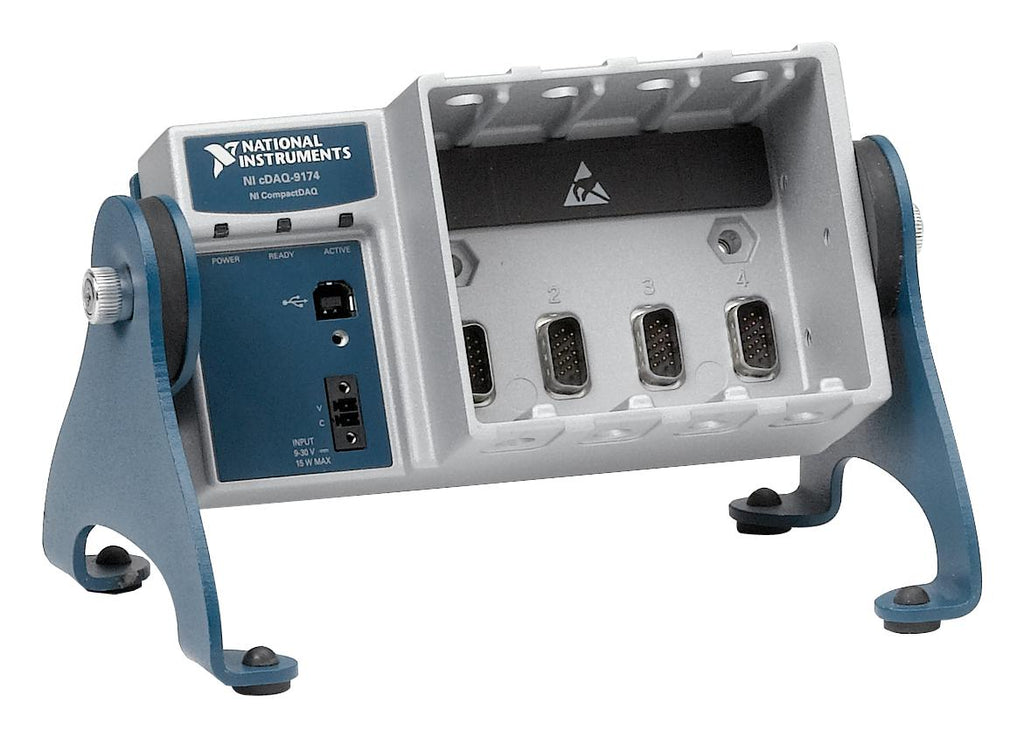

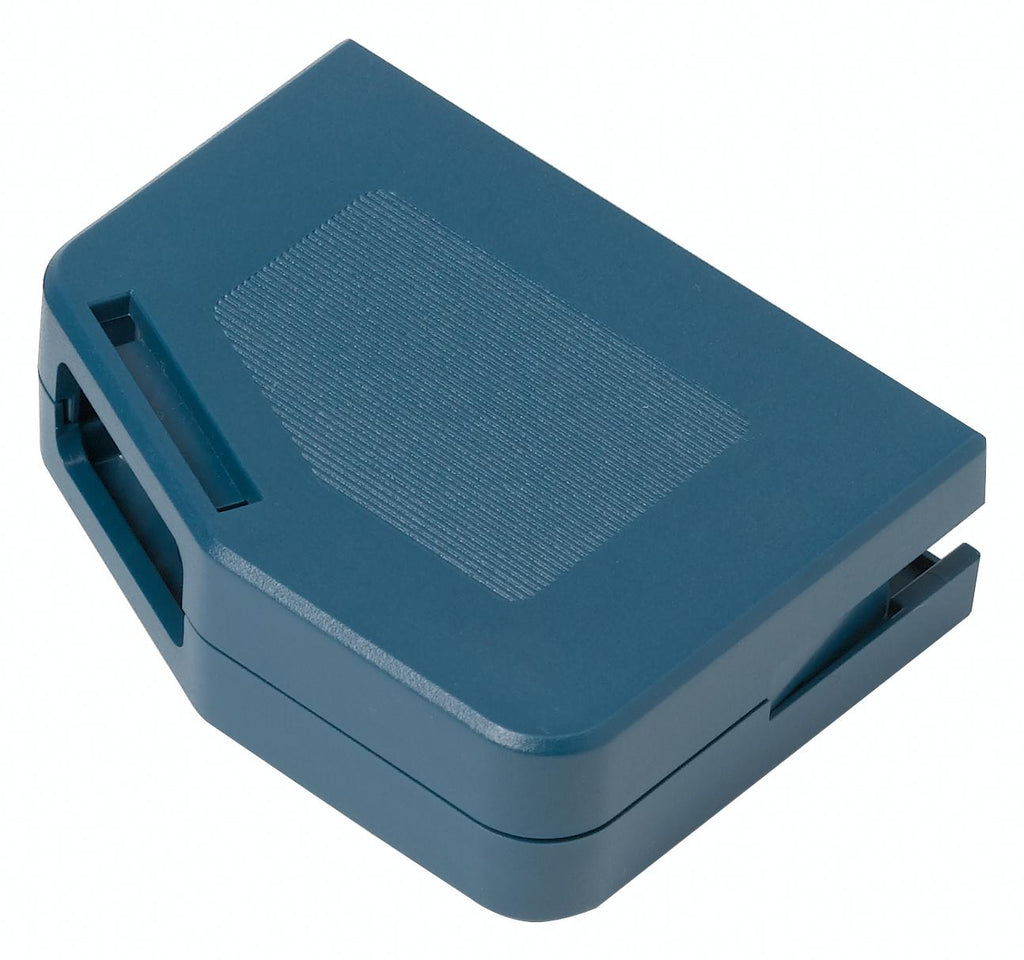

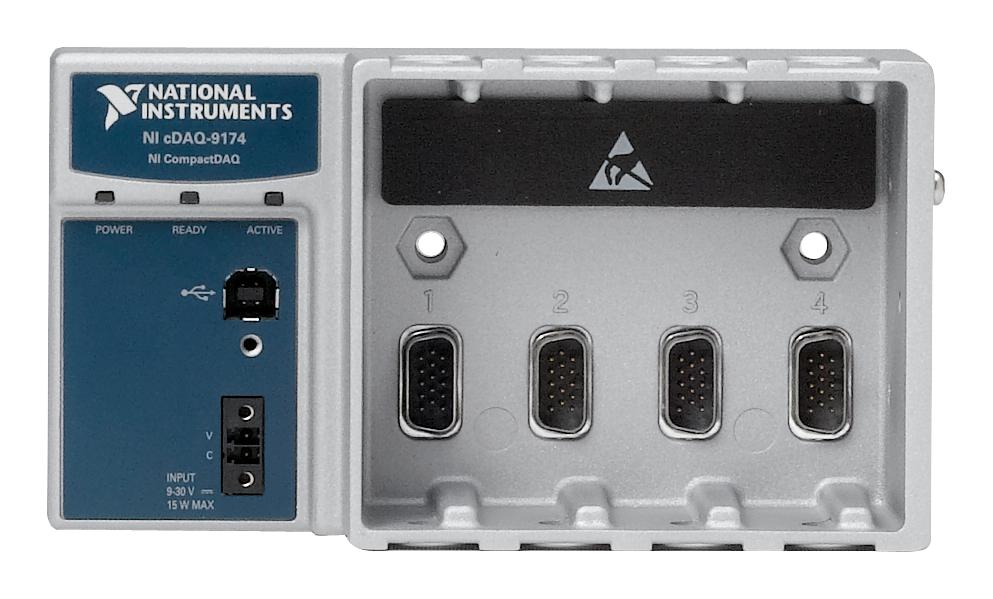

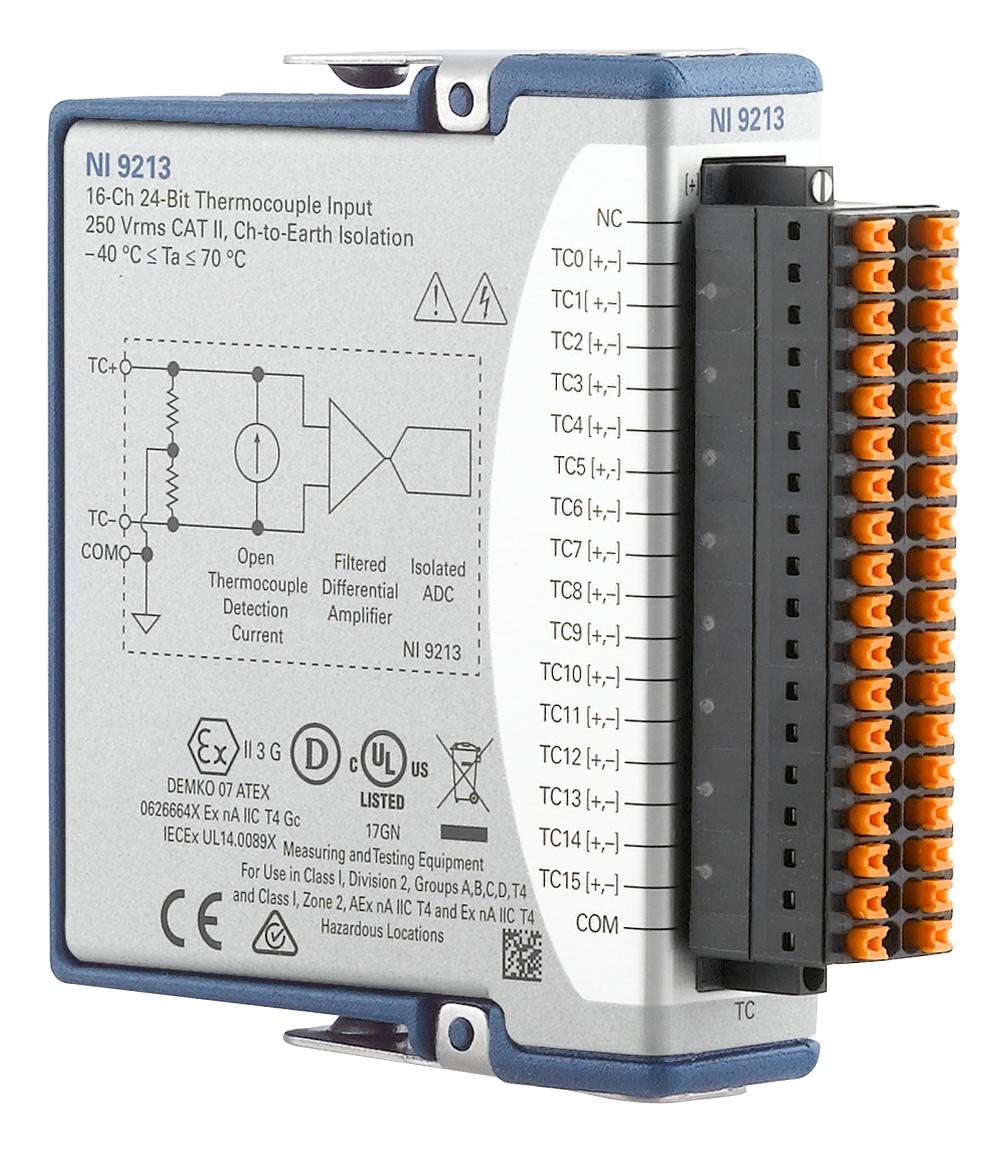

2 x NI-9213 Thermocouple Input Module, cDAQ-9174 Chassis, 9940 Backshell, Desktop Mounting Kit |
| Product Range |
- |
Other details
| Brand |
NI |
| Part Number |
868014-01 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Enhanced Product Overview EN |
|
