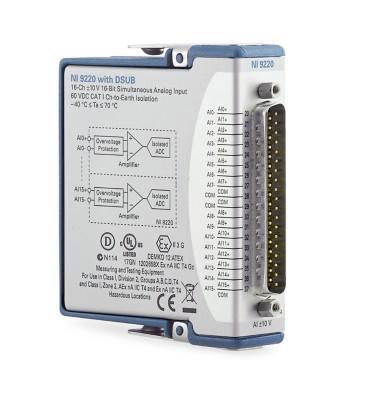

The NI-9220 performs simultaneous differential analogue inputs with 250 Vrms CAT II or 60 VDC CAT I isolation. The module is capable of generating 3.2 MB/s of data at the maximum sampling rate. There are two connector options for the NI-9220: a 36-position spring-terminal connector and a 37-position D-SUB connector.
Product details
| Product Type:
C Series Voltage Input Module
|
| Sampling Rate:
100kSPS
|
| Resolution (Bits):
16bit
|
| No. of Input Channels:
16Channels
|
| No. of Output Channels:
-
|
| No. of I/O's:
-
|
| Supply Voltage Range:
-10V to 10V
|
| Operating Temperature Range:
-40°C to +70°C
|
| For Use With:
NI CompactDAQ/CompactRIO Systems
|
| Product Range:
NI-9220
|
Other details
| Brand |
NI |
| Part Number |
782615-02 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
