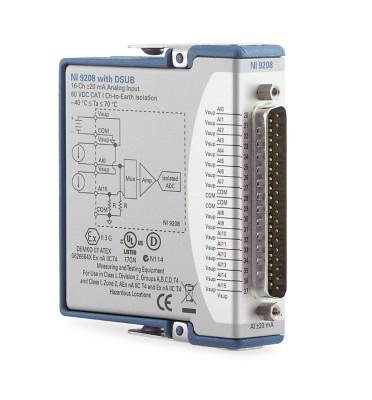

The NI-9208 is designed with industrial systems in mind. It includes a high-resolution mode with 50/60 Hz rejection to remove low frequency noise. It has high-channel density to reduce the number of modules needed, which leaves slots open for other measurement types or for reducing the overall per channel cost of the system. The NI-9208 uses a standard D-SUB connection for use with cables and connector blocks.
Product details
| Product Type:
C Series Current Input Module
|
| Sampling Rate:
500SPS
|
| Resolution (Bits):
24bit
|
| No. of Input Channels:
16Channels
|
| No. of Output Channels:
-
|
| No. of I/O's:
-
|
| Supply Voltage Range:
-
|
| Operating Temperature Range:
-40°C to +70°C
|
| For Use With:
NI CompactDAQ/CompactRIO Systems
|
| Product Range:
NI-9208
|
Other details
| Brand |
NI |
| Part Number |
780968-02 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
