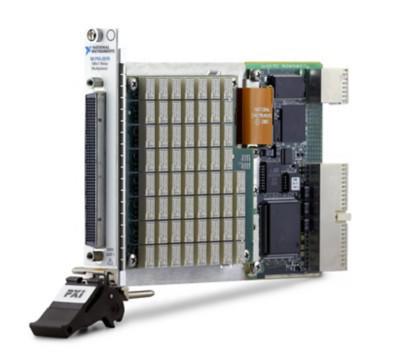

The PXI-2575 is a high-density PXI multiplexer switch module that is ideal for high-channel-count automated test applications. It uses electromechanical relays and can route hundreds of signals to measurement devices or from source units. The PXI-2575 also features on-board relay counting for relay monitoring and deterministic operation with hardware triggers to improve test throughput.
Product details
| Switch Type:
PXI Multiplexer Switch Module
|
| Switch Configuration:
1-Wire 196 x 1
|
| No. of Channels:
196Channels
|
| Bus Connector Type:
PXI Hybrid
|
| Relay Type:
Electromechanical
|
| Switching Voltage Max:
100VDC
|
| Switching Current Max:
1A
|
| Bandwidth:
20MHz
|
| For Use With:
NI PXI Controller
|
| Product Range:
PXI-2575
|
Other details
| Brand |
NI |
| Part Number |
778572-75 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
