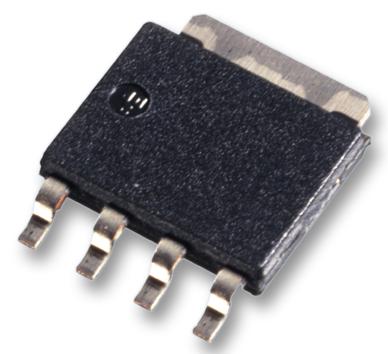

Nexperia PSMNR90-40YLHX Mosfet Transistor N Channel 300 A 40 V 0.00076 ohm 10 1.7

This is a MOSFET Transistor, N Channel, 300 A, 40 V, 0.00076 ohm, 10 V, 1.7 V product from NEXPERIA with the model number PSMNR90-40YLHX

Product details

Transistor Polarity	N Channel
Continuous Drain Current Id	300A
Drain Source Voltage Vds	40V
On Resistance Rds(on)	760?ohm
Rds(on) Test Voltage Vgs	10V
Threshold Voltage Vgs	1.7V
Power Dissipation Pd	333W
Transistor Case Style	LFPAK
No. of Pins	4Pins
Operating Temperature Max	175?C
Product Range	-
Automotive Qualification Standard	-
MSL	MSL 1 - Unlimited

Other details

Brand	NEXPERIA
Part Number	PSMNR90-40YLHX
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
