| ₹ 167.43 includes GST and import duties. | |
| B2B customers can avail ₹ 25.53 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

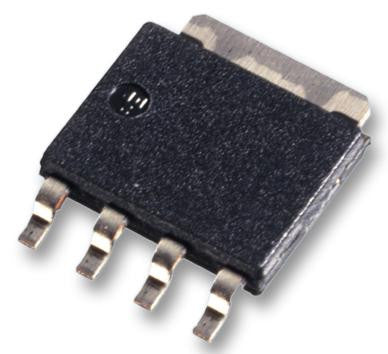

The PSMN8R5-60YS is a 60V standard level N-channel MOSFET using advanced TrenchMOS provides low RDS (on) and low gate charge and high efficiency gains in switching power converters. Suitable for use in DC to DC converters, motor control and server power supplies applications.
- 175°C Junction temperature
- Improved mechanical and thermal characteristics
Applications
Power Management, Motor Drive & Control
Product details
| Power Dissipation Pd | 106W |
| Operating Temperature Max | 175°C |
| Continuous Drain Current Id | 76A |
| Transistor Polarity | N Channel |
| No. of Pins | 4Pins |
| Threshold Voltage Vgs | 3V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | 60V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | SOT-669 |
| On Resistance Rds(on) | 0.0056ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | PSMN8R5-60YS |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 164.08 |
| 3-5 | ₹ 162.41 |
| 5-10 | ₹ 159.06 |
| 10+ | ₹ 155.71 |
Bulk discount will be automatically applied during checkout based on quantity.
