Description

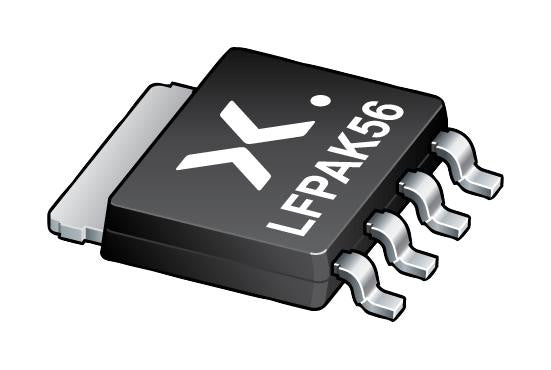

This is a MOSFET Transistor, N Channel, 95 A, 30 V, 0.0034 ohm, 10 V, 1.74 V product from NEXPERIA with the model number PSMN4R0-30YLD
Product details
| Power Dissipation Pd | 64W |
| Operating Temperature Max | 175°C |
| Continuous Drain Current Id | 95A |
| Transistor Polarity | N Channel |
| No. of Pins | 4Pins |
| Threshold Voltage Vgs | 1.74V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | 30V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | SOT-669 |
| On Resistance Rds(on) | 0.0034ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | PSMN4R0-30YLD |
| Quantity | Each (Supplied on Cut Tape) |
