| ₹ 526.94 includes GST and import duties. | |
| B2B customers can avail ₹ 80.36 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

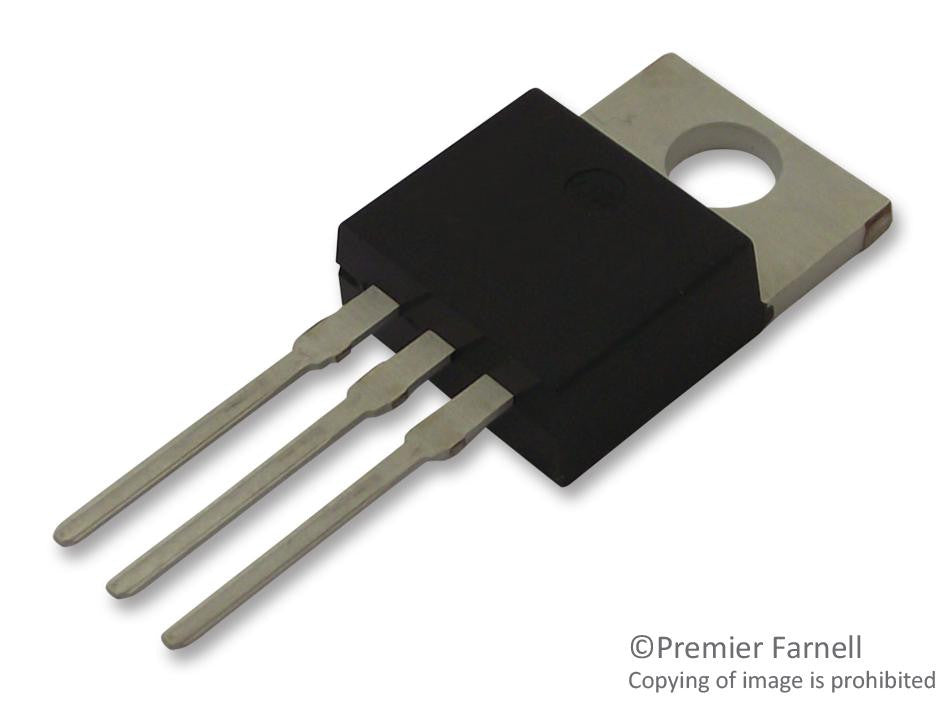

This is a MOSFET Transistor, N Channel, 120 A, 80 V, 0.003 ohm, 10 V, 3 V product from NEXPERIA with the model number PSMN3R5-80PS
Product details
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 120A |
| Drain Source Voltage Vds | 80V |
| On Resistance Rds(on) | 0.003ohm |
| Rds(on) Test Voltage Vgs | 10V |
| Threshold Voltage Vgs | 3V |
| Power Dissipation Pd | 338W |
| Transistor Case Style | TO-220AB |
| No. of Pins | 3Pins |
| Operating Temperature Max | 175°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | - |
Other details
| Brand | NEXPERIA |
| Part Number | PSMN3R5-80PS |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 516.4 |
| 3-5 | ₹ 511.13 |
| 5-10 | ₹ 500.59 |
| 10+ | ₹ 490.05 |
Bulk discount will be automatically applied during checkout based on quantity.
