| ₹ 234.12 includes GST and import duties. | |
| B2B customers can avail ₹ 35.7 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The PSMN1R4-40YLD is a N-channel enhancement-mode logic level gate drive MOSFET using advanced TrenchMOS® Superjunction technology. It is designed and qualified for high performance power switching applications.
- NextPower-S3 technology delivers superfast switching with soft recovery
- Low QRR, QG and QGD for high system efficiency and low EMI designs
- Schottky-plus body-diode, gives soft switching without the associated high IDSS leakage
- Optimised for 4.5V gate drive utilising NextPower-S3 Superjunction technology

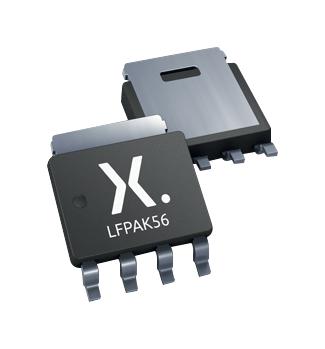

- High reliability LFPAK package, copper-clip, solder die attach and qualified to 175°C
- Exposed leads can be wave soldered, visual solder joint inspection and high quality solder joints
- Low parasitic inductance and resistance
- -55 to 175°C Junction temperature range
Power Management, Motor Drive & Control, Industrial, Medical
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | NEXPERIA |
| Part Number | PSMN1R4-40YLDX |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 229.44 |
| 3-5 | ₹ 227.1 |
| 5-10 | ₹ 222.41 |
| 10+ | ₹ 217.73 |
Bulk discount will be automatically applied during checkout based on quantity.
