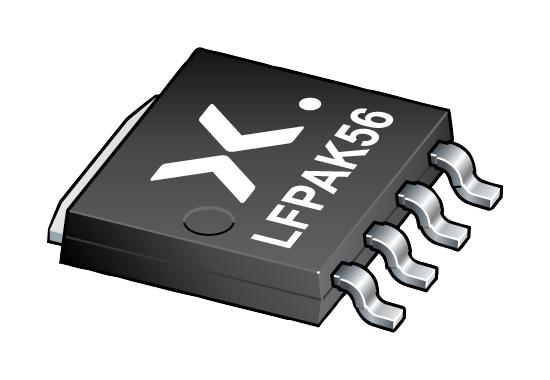

Nexperia PSMN0R9-30YLDX Power Mosfet N Channel 30 V 100 A 650 �ohm SOT-1023 Surface Mount

The PSMN0R9-30YLD is a 30V logic level N-channel Enhancement Mode MOSFET using NextPowerS3 technology. NextPowerS3 portfolio utilising NXP's unique SchottkyPlus technology delivers high efficiency, low spiking performance usually associated with MOSFETs with an integrated Schottky or Schottky-like diode but without problematic high leakage current. It is particularly suited to high efficiency applications at high switching frequencies. Suitable for on-board DC-to-DC solutions for server and telecommunications and secondary-side synchronous rectification in telecommunication applications.

• Avalanche rated, 100% tested at I (as) = 190A
• Ultra low QG, QGD and QOSS for high system efficiency, especially at higher switching frequencies
• Superfast switching with soft-recovery, s-factor >1
• Low spiking and ringing for low EMI designs
• Optimised for 4.5V gate drive
• Low parasitic inductance and resistance
• High reliability clip bonded and solder die attach power SO8 package
• Wave solderable exposed leads for optimal visual solder inspection

Applications

Power Management, Industrial, Communications & Networking, Medical

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	NEXPERIA
Part Number	PSMN0R9-30YLDX
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Technical Data Sheet EN
Product Change Notice EN
