Description

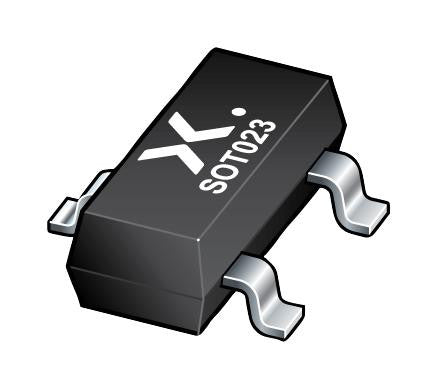

This is a MOSFET Transistor, N Channel, 4.7 A, 20 V, 0.024 ohm, 4.5 V, 700 mV product from NEXPERIA with the model number PMV28UNEA
Product details
| Power Dissipation Pd | 510mW |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | 4.7A |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 700mV |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q101 |
| Drain Source Voltage Vds | 20V |
| Rds(on) Test Voltage Vgs | 4.5V |
| Transistor Case Style | TO-236AB |
| On Resistance Rds(on) | 0.024ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | PMV28UNEA |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
