Description

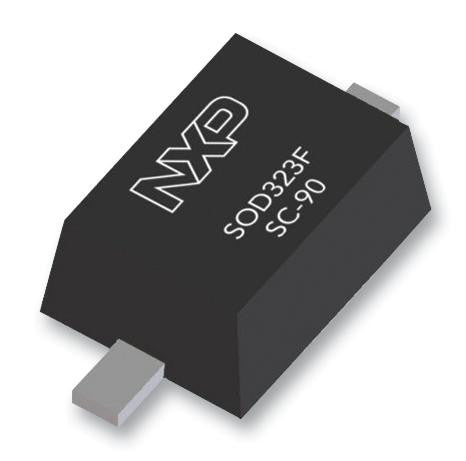

The PMEG4010CEJ,115 is a planar maximum efficiency general application (MEGA) Schottky barrier Rectifier Diode with an integrated guard ring for stress protection. The Low VF Schottky rectifier offers extremely low forward voltage drop during operation, resulting in high efficiency and reduced heat generation.
- Very low forward voltage
- Low losses over entire current range
- Ultra low forward voltage drop VF
- Increased reliability
- Reduced board space
Applications
Power Management, Safety
Product details
| Forward Voltage VF Max | 570mV |
| Operating Temperature Max | 150°C |
| No. of Pins | 2Pins |
| Forward Current If(AV) | 1A |
| Product Range | PMEG4 Series |
| Automotive Qualification Standard | - |
| Diode Configuration | Single |
| Repetitive Reverse Voltage Vrrm Max | 40V |
| Packaging | Cut Tape |
| Diode Case Style | SOD-323F |
| Forward Surge Current Ifsm Max | 10A |
Other details
| Brand | NEXPERIA |
| Part Number | PMEG4010CEJ,115 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
