Description

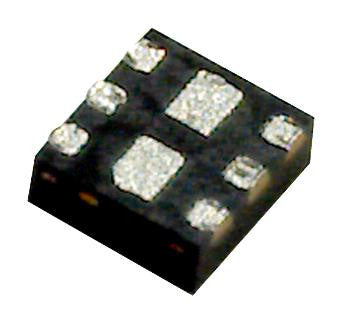

This is a Dual MOSFET, Dual P Channel, -410 mA, -30 V, 1.2 ohm, -4.5 V, -700 mV product from NEXPERIA with the model number PMDXB1200UPE
Product details
| Transistor Polarity | Dual P Channel |
| Continuous Drain Current Id | -410mA |
| Drain Source Voltage Vds | -30V |
| On Resistance Rds(on) | 1.2ohm |
| Rds(on) Test Voltage Vgs | -4.5V |
| Threshold Voltage Vgs | -700mV |
| Power Dissipation Pd | 285mW |
| Transistor Case Style | DFN1010B |
| No. of Pins | 6Pins |
| Operating Temperature Max | 150°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | PMDXB1200UPE |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
