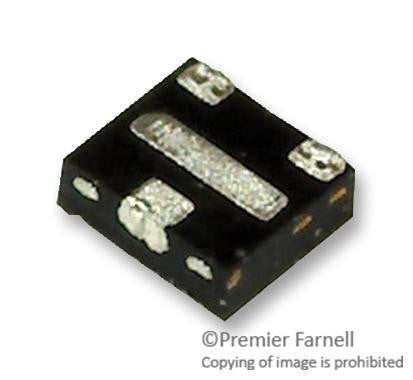

This is a Bipolar Pre-Biased / Digital Transistor, Single NPN, 50 V, 100 mA, 4.7 kohm, 10 kohm, 0.47 (Ratio) product from NEXPERIA with the model number PDTC143XQA
Product details
| Collector Emitter Voltage V(br)ceo |
50V |
| RF Transistor Case |
SOT-1215 |
| No. of Pins |
3 Pin |
| Product Range |
- |
| Automotive Qualification Standard |
AEC-Q101 |
| Resistor Ratio, R1 / R2 |
0.47(Ratio) |
| Continuous Collector Current Ic |
100mA |
| Digital Transistor Polarity |
Single NPN |
| Base-Emitter Resistor R2 |
10kohm |
| Base Input Resistor R1 |
4.7kohm |
| MSL |
MSL 1 - Unlimited |
Other details
| Brand |
NEXPERIA |
| Part Number |
PDTC143XQA |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
